Discontinued

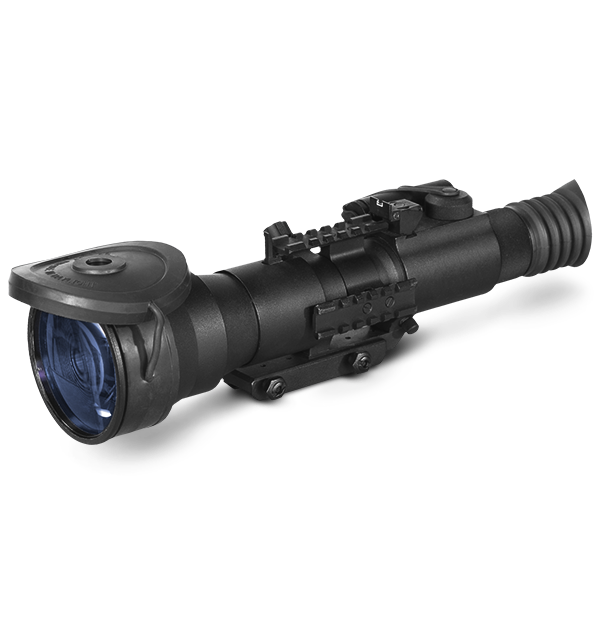

FLIR Nemesis 6x
Night Vision Riflescope
The FLIR Nemesis 6x is designed to place shots on long-range targets in minimal light conditions. Built with high-performance Gen 2+ or Gen 2 "Quicksilver" black and white image intensifier tubes, the Nemesis 6x captures excellent night vision and mounts on standard Picatinny/Weaver rail systems. Adjustable illuminated reticle and included detachable long-range IR illuminator enhance image clarity and shot precision.
Superior Clarity for Long-Range Precision
6x optical lens, high-performance intensifier tube, and XLR IR illuminator produce superior vision downrange.
Manual reticle controls and easy-to-use windage and elevation compensation allow quick shooting adjustments.
Three unique mounting rails for lasers, illuminators, and other compatible accessories.
规格
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | Multi-Alkali |
| 出射光瞳直径[mm] | 10 mm |
| 分辨率 | 47-54 lp/mm |
| 屈光度调节 | -6 to +2 dpt |
| 放大率 | 6x |
| 第IIT代像管等级 | Gen 2+ QS ("Quick Silver" White Phosphor) |
| 红外发光器 | Detachable Long Range IR |
| 自动亮度控制 | Yes |
| 良视距[mm] | 46 mm |
| 视场角 | 6.5° |
| 调焦范围 | 25 m to Infinity |
| 镜头系统 | F/2.0; 160 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +70°С (-58°F to +158°F) |
| 工作温度 | -40°C to +50°С (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (In FOV) |
| 电池寿命 | Up to 60 hours |
| 电源 | One CR-123 Lithium 3V or Any CR123 type rechargeable batteries with voltage 3.2V |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | Yes |
| UI-UX | |
|---|---|
| 十字线颜色 | Red |
| 手动增益控制 | No |
| 红外指示器 | No |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | Crosshair |
| 轨道之上观测装置轴线的高度 | - |
| 风阻_仰角调节 | 1/2 MOA |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 1.9 kg (4.2 lbs) |
| 尺寸（长 x 宽 x 高） | 385 x 91 x 99 mm (15.2 x 3.6 x 3.9 in) |
| 配件 | |
|---|---|
| 可选附件 | Extended Rail Adapter #85, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam |
| 随附配件 | XLR-IR850 Detachable X-Long Range Infrared Illuminator, Remote Control, Soft carrying Case, One Lithium Battery CR123A, Instruction Manual with Warranty Card, Packing Box, Lens Tissue |
