Discontinued

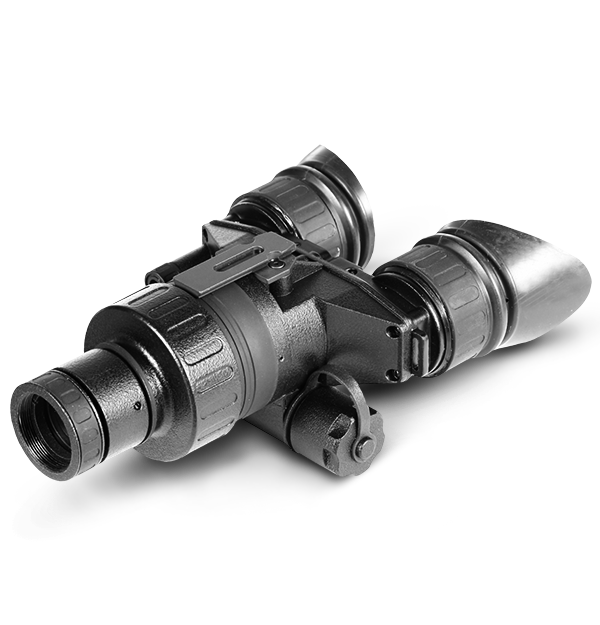

Nyx-7

Night Vision Goggles

The FLIR Nyx-7 bi-ocular goggle system offers clear and bright night vision in minimal light conditions. High-grade optics, intuitive electronics, and Gen 2+ image intensifier tubes offer reliable vision while head or helmet mounting options allow exceptional hands-free use. Available 3x or 5x magnification lenses and attachable high-powered IR illuminator add mid- to long-range viewing capability.

Reliable Vision in a Customizable System

Built-in IR illuminator and ruggedized weather-resistant housing maintain imaging performance in difficult conditions

Head and helmet mounting options, external illuminator, and available magnified lenses enhance user-customization.

Automatic brightness control and 60-hour battery life offer reliable and long-lasting night vision.

规格

传感器与光学
亮光切断	Yes
光阴极类型	Multi-Alkali
出射光瞳直径[mm]	14 mm
分辨率	45-51 lp/mm
屈光度调节	±5 diopter
放大率	1x standard (3x, 5x optional)
第IIT代像管等级	Gen 2+ SD (Standard Definition)
红外发光器	Yes
自动亮度控制	Yes
良视距[mm]	16 mm
视场角	40°
调焦范围	0.25 m to Infinity
镜头系统	F/1.2; 24 mm

环境与认证
存储温度	-50°C to +70°C (-58°F to +158°F)
工作温度	-40°C to +50°C (-40°F to +122°F)

电源
电池低电量指示	Yes (In FOV)
电池寿命	Up to 60 hours
电源	CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1)
自动关机	Yes

文件存储和通讯
远程控制	-

UI-UX
十字线颜色	-
手动增益控制	No
红外指示器	Yes (In FOV)

系统概览
保修	2 Years
十字线类型	-
轨道之上观测装置轴线的高度	-
风阻_仰角调节	-

物理
三脚架	-
产品重量	0.45 kg (0.9 lbs)
尺寸（长 x 宽 x 高）	150 × 102 × 70 mm (5.9 × 4 × 2.8 in)

配件
可选附件	ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37 , MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Lens Kit: Lens #22 with Adapter #23, Helmet Mount #183 (Shroud), Adapter #59, 5x Afocal Lens with Adapter #23, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Mil-Standard Hard Shipping/Storage Case #101, Helmet Mount #4
随附配件	One Lithium Battery CR123A, Soft carrying Case, Instruction Manual with Warranty Card, Goggle Kit #2, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Packing Box

配件

可选附件

ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37 , MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Lens Kit: Lens #22 with Adapter #23, Helmet Mount #183 (Shroud), Adapter #59, 5x Afocal Lens with Adapter #23, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Mil-Standard Hard Shipping/Storage Case #101, Helmet Mount #4

随附配件

One Lithium Battery CR123A, Soft carrying Case, Instruction Manual with Warranty Card, Goggle Kit #2, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Packing Box
