Discontinued

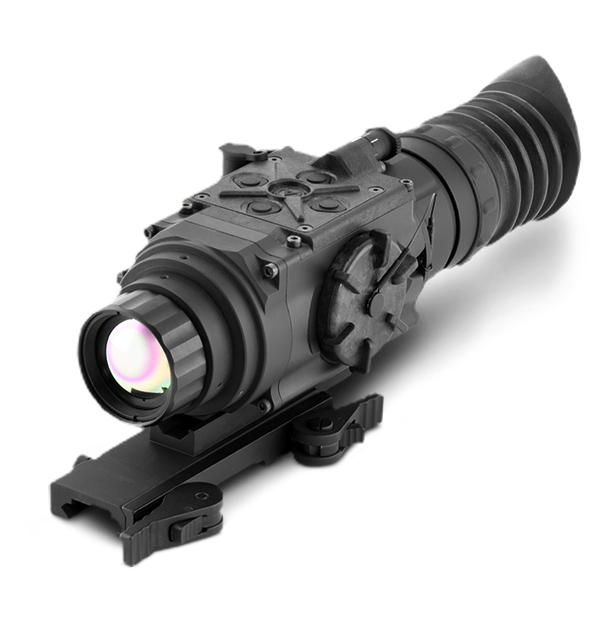

FLIR Predator

Thermal Imaging Riflescope

Ready for day and night engagements, the FLIR Predator offers trusted thermal imaging in a compact, standalone weapon sight. Built with FLIR’s Tau 2 thermal core, the Predator can detect targets in complete darkness and through atmospheric obscurants such as snow, dust, smoke, and fog. The lightweight and intuitive weapon sight offers multiple user-controlled palettes and reticles for better target visibility and shot accuracy.

Proven Thermal Detection

Multiple user-controlled reticles and 25 mm lens allow rapid target acquisition in complete darkness and low-visibility weather conditions.

Reliable thermal imaging in one of the lightest and most compact weapon sights in its class.

Quick-release Picatinny rail mount, three second start-up time, and wireless remote control allow fast and simple operation.

规格

Highlighted
视频录制	Optional Digital Video Recorder with SD card slot

传感器与光学
俯仰角调节范围[NTSC _ PAL]	±72MOA
像素尺寸	17 µm
像素显示格式	640×480
像素阵列格式	640×512
出射光瞳直径[mm]	10 mm
刷新率	30 Hz
动态对比增强（ACE）	Yes
屈光度调节	Manual
屈光度调节范围	±5 diopter
放大率	1x
无声无快门非均匀性校正[SSN]	Yes
显示屏亮度	Discretely Adjustable to 8 Levels
显示屏类型	LED VGA
焦平面阵列类型	FLIR Tau 2
物镜光圈数	1:1
物镜焦距	25 mm
物镜类型	Germanium
瞄准线保持	-
瞄准线可重复性	-
瞄准线精度	-
瞄准线调节[Pix_MOA]	Digitally Controlled
第二代数字细节增强[DDE] _ 清晰度	Yes
自动增益控制[AGC]	Yes
良视距[mm]	45 mm
视场角[角度]	25° × 8°
调焦范围	20m to inf.

环境与认证
后坐阻力	700 g
存储温度	-50°C to +70°C (-58°F to +158°F)
工作温度	-40°C to +50°C (-40°F to +122°F)

电源
启动时间	3 sec
外部电源	6 VDC/ 600mA
电池	Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2)
电池寿命	Up to 4 (optional up to 12 hrs)
电池电量状态指示器	Yes

文件存储和通讯
模拟输入和输出格式[分辨率]	PAL/ NTSC (640×480 pixels)
视频录制	Optional Digital Video Recorder with SD card slot
远程控制	Wireless

UI-UX
十字线颜色	Black, White, Red, Cyan
基于信息的直方图均衡化[IBHEQ] _ SKY_SEA	-
数字角度余弦指示器	-
智能场景优化	Yes
热图像调色板	White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom
用户_受控手动非均匀性校正_ 平场校正 [UCMNUC_ FFC]	Yes
调焦方法	-

系统概览
保修	2 years standard, 3 years with product registration
十字线类型	6-Pattern Digitally Controlled Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, and No Reticle
探测器保修	10 Years
数字变焦	2×, 4x, and 8x
数字测斜仪	-
数字罗盘	-
轨道之上观测装置轴线的高度	42 mm (1.65 in)
风阻_仰角瞄准线增量 [NTSC]	1.2 mOA, 0.35 mils, 1.3 in/100 yd, 3.5 cm/100 m
风阻_仰角瞄准线增量 [PAL]	-
风阻调节范围[NTSC_ PAL]	±96MOA

物理
尺寸（长 x 宽 x 高）	274 × 74 × 83 mm (10.8 × 2.9 × 3.3 in)
重量[不含电池]	0.63 kg (1.4 lbs)

配件
可选配件	Mil-Standard Hard Shipping/Storage Case #101, AMRF2200 - Advanced Modular Range Finder, Extended Battery Pack, IRIS Wireless Head Mounted Display, HD DVR Digital Video Recorder
随附配件	Soft carrying Case, Battery Cassette, Packing Box, Instruction Manual with Warranty Card, Two Lithium Battery CR123A, AWReC (Advanced Wireless Remote Control) #94, Picatinny adapter for AWReC (Advanced Wireless Remote Control), Video Cable, Lens Tissue
