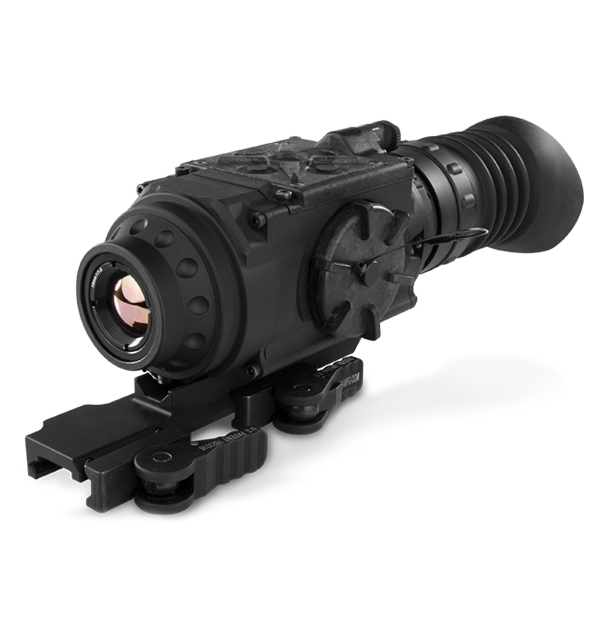

FLIR ThermoSight® PRO PTS233
Thermal Imaging Weapon Sight
Powered by the breakthrough FLIR Boson core, the ThermoSight Pro Series® PTS233 weapon sight sets the standard for thermal detection and classification. Featuring a 12 µm pixel pitch sensor and 19mm lens, the PTS233 delivers brilliant, clean thermal imaging with a 12° × 9.5° field of view for greater precision. The entire ThermoSight Pro Series offers an uncompressed video signal, a high definition display, and shot-activated video recording.
规格
| Highlighted | |
|---|---|
| 光学放大率 | 1.5x |
| 视场角 | 12° x 9.5° |
| 传感器与光学 | |
|---|---|
| 光学放大率 | 1.5x |
| 图像处理 | FLIR Proprietary Digital Detail Enhancement™ |
| 屈光度调节范围 | -5 to +5 dpt |
| 探测器类型 | 320 x 256 VOx Microbolometer |
| 机芯 | FLIR 12µm BOSON |
| 瞄准线调节类型 | Digitally Controlled |
| 良视距 | 45 mm |
| 视场角 | 12° x 9.5° |
| 调焦范围 | 10m to infinity (not focusable) |
| 镜头系统 | 19 mm; F/1.0 |
| 环境与认证 | |
|---|---|
| 存储温度 | -40°C to +60°C (-40°F to +140°F) |
| 工作温度 | -20°C to +50°C (-4°F to +122°F) |
| 电源 | |
|---|---|
| 外接电源 | Through USB-C port (5Vdc) |
| 电池寿命（工作） | Up to 4 hr |
| 电池类型 | 2 CR123A 3V Lithium batteries |
| 文件存储和通讯 | |
|---|---|
| USB-C连接器 | Digital Video Out, Laser Range Finder Connections |
| 内部存储器 | Up to 2.5 hours of recorded video or up to 1,000 pictures |
| 视频输出 | Digital Video |
| UI-UX | |
|---|---|
| 十字线颜色 | Black, White, Red, and Cyan |
| 控制面板按钮 | Configures Operational Settings: Display Brightness Control Image Palette Control Digital Zoom Control Reticle Color Control Reticle Pattern Control Boresighting Adjustment On-Screen Menu Navigation |
| 显示屏 | Quad-VGA (1280 x 960) FLCOS |
| 极性 | White Hot, Black Hot, Rainbow High Contrast, Ironbow, Sepia, Arctic, Outdoor Alert |
| 视频刷新率 | 60 Hz |
| 运行开关 | On/ Off/ Standby Mode |
| 系统概览 | |
|---|---|
| 包装包括 | Thermal Weapon Sight, CR123A Battery (2), Battery Cassette, Spare Battery Cassette, USB to USB Type C Cable (3'), Lens Cloth, Quick Start Guide, and Hard Carrying Case |
| 十字线类型 | Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, Crossdash, and "No Reticle" |
| 尺寸（长×宽×高） | 8.7" × 2.7" × 3.3" (220 x 68 x 84 mm) |
| 数字变焦 | 2x, 4x |
| 数字变焦 | 1×, 2×, 4× |
| 武器基座类型 | Picatinny, MIL-STD 1913, and Weaver Rails |
| 轨道之上观测装置轴线的高度 | 1.65 in (42 mm) |
| 物理 | |
|---|---|
| 重量 | 0.65 kg (1.44 lbs) |
| 颜色（外壳） | Black |
