Discontinued

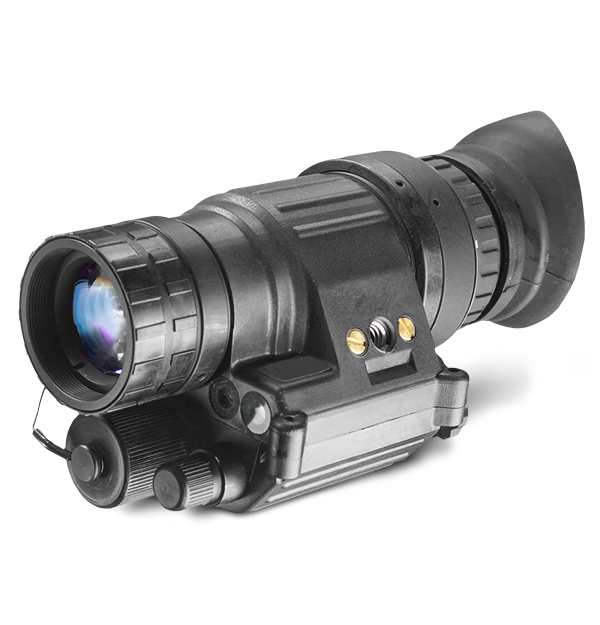

FLIR PVS-14-51

51° Night Vision Monocular

The FLIR PVS-14-51 single-tube night vision system brings a wide 51-degree field of view to the tough, military-trusted AN/PVS-14 housing. Head and helmet mounting promote hands-free operation while a maximized field of view enhances awareness and minimizes necessary movement. Built-in IR illuminator allows clear, covert vision in complete darkness.

Wide-Angle Advantage Meets Battle-Tested Design

51-degree lens provides a 28% increase in scene size over comparable 40-degree models.

Compact AN/PVS-14 housing is a trusted, longstanding night vision favorite of US military and law enforcement professionals.

Maintain a tactical advantage in the toughest lighting conditions with built-in IR illuminator and manual gain control.

规格

Highlighted
工作温度	-40°C to +50°C (-40°F to +122°F)

传感器与光学
亮光切断	Yes
光阴极类型	Multi-Alkali
出射光瞳直径[mm]	-
分辨率	-
屈光度调节	-6 to +4 dpt
放大率	1x standard (3x, 5x optional)
第IIT代像管等级	GEN 2+ HD (High Definition) MG
红外发光器	Yes (built-in with pivotal flood lens)
自动亮度控制	No
良视距[mm]	-
视场角	51°
调焦范围	0.25 m to Infinity
镜头系统	F/1.26; 19mm

环境与认证
存储温度	-50°C to +50°C (-58°F to +122°F)
工作温度	-40°C to +50°C (-40°F to +122°F)

电源
电池低电量指示	Yes (In FOV)
电池寿命	Up to 50 hours
电源	One AA battery
自动关机	Yes

文件存储和通讯
远程控制	-

UI-UX
十字线颜色	-
手动增益控制	Yes
红外指示器	Yes (In FOV)

系统概览
保修	2 Years
十字线类型	-
轨道之上观测装置轴线的高度	-
风阻_仰角调节	-

物理
三脚架	-
产品重量	0.32 kg (0.7 lbs)
尺寸（长 x 宽 x 高）	158 × 51 × 60 mm (6.2 × 2.0 × 2.4 in)

配件
可选附件	MICH Helmet Mount Assembly USA #107 (PVS-7, PVS-14), PASGT Helmet Mount Assembly USA #108 (PVS-7, PVS-14), Weapons Mount #109 (PVS14/6015), Extended Rail Adapter #85, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Magnifier Lens #99, 5x Afocal Magnifier Lens #100, 3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14), 5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101
随附配件	Packing Box, Soft Carrying Case, Lens Tissue, Instruction Manual with Warranty Card, Day Light Filter, Sacrificial Window, Demist Shields, Shoulder Strap, Tethering Cord, Helmet/Head Mount Adapter, Head Mount Assembly, Brow Pads.

配件

可选附件

MICH Helmet Mount Assembly USA #107 (PVS-7, PVS-14), PASGT Helmet Mount Assembly USA #108 (PVS-7, PVS-14), Weapons Mount #109 (PVS14/6015), Extended Rail Adapter #85, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Magnifier Lens #99, 5x Afocal Magnifier Lens #100, 3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14), 5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101

随附配件

Packing Box, Soft Carrying Case, Lens Tissue, Instruction Manual with Warranty Card, Day Light Filter, Sacrificial Window, Demist Shields, Shoulder Strap, Tethering Cord, Helmet/Head Mount Adapter, Head Mount Assembly, Brow Pads.
