Discontinued

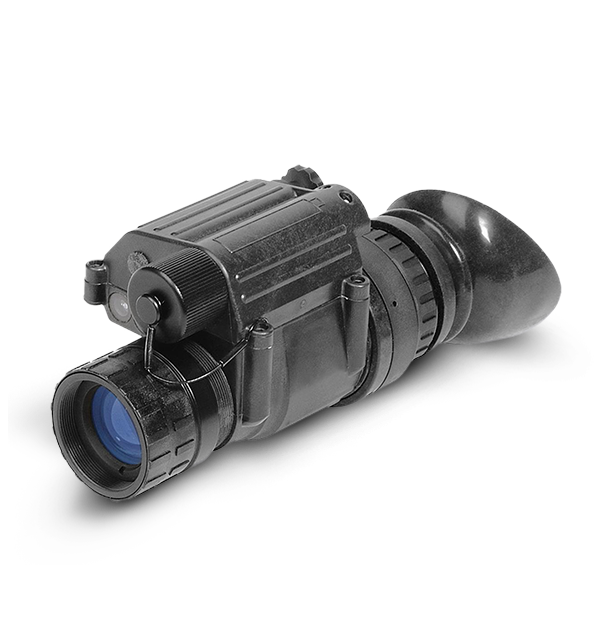

FLIR PVS-14

40° Night Vision Monocular

Built on the framework of United States Military-commissioned AN/PVS-14 night vision units, the FLIR PVS-14 offers enhanced tactical awareness in a classic, battle-tested design. Flexible mounting options and adjustable gain control in a rugged, compact housing showcase why the PVS-14 remains a favorite among military and law enforcement professionals.

The Battle-Tested Standard in Night Vision

The AN/PVS-14 multi-purpose monocular has long been a staple for US military and law enforcement professionals.

Onboard manual gain control and IR illuminator maintain tactical awareness in minimal light conditions.

Head and helmet mounting capability allow simple hands-free use.

规格

Highlighted
工作温度	-51°C to +49°C (-59°F to +120°F)

传感器与光学
亮光切断	Yes
光阴极类型	GaAs
出射光瞳直径[mm]	-
分辨率	57-64 lp/mm
屈光度调节	-6 to +4 dpt
放大率	1x
第IIT代像管等级	Gen 3 Bravo MG
红外发光器	Yes (built-in with flood lens)
自动亮度控制	Yes
良视距[mm]	-
视场角	40°
调焦范围	0.25 m to Infinity
镜头系统	F/1.2; 26 mm

环境与认证
存储温度	-51°C to +85°C (-22°F to +185°F)
工作温度	-51°C to +49°C (-59°F to +120°F)

电源
电池低电量指示	Yes (In FOV)
电池寿命	Up to 50 hours
电源	One AA battery
自动关机	Yes

文件存储和通讯
远程控制	-

UI-UX
十字线颜色	-
手动增益控制	Yes
红外指示器	Yes (In FOV)

系统概览
保修	2 Years
十字线类型	-
轨道之上观测装置轴线的高度	-
风阻_仰角调节	-

物理
三脚架	-
产品重量	0.35 kg (0.77 lbs)
尺寸（长 x 宽 x 高）	114 × 51 × 57 mm (4.5 × 2 × 2.25 in)

配件
可选附件	Weapons Mount #109 (PVS14/6015), XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM-PRO-L Kit: AIM-PRO-L with Adapter Ring #62, XLR-IR850 Detachable X-Long Range Infrared Illuminator, AIM-PRO Kit: AIM-PRO with Adapter Ring #62, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, MICH Helmet Mount Assembly USA #107, Extended Rail Adapter #85, Mil-Standard Hard Shipping/Storage Case #101
随附配件	Brow Pads, Helmet/Head Mount Adapter, Head Mount Assembly, Instruction Manual with Warranty Card, Soft carrying Case, Shoulder Strap, Demist Shields, Packing Box, Tethering Cord, 1x AA Batteries, Day Light Filter, Lens Tissue, Sacrificial Window

配件

可选附件

Weapons Mount #109 (PVS14/6015), XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, AIM-PRO-L Kit: AIM-PRO-L with Adapter Ring #62, XLR-IR850 Detachable X-Long Range Infrared Illuminator, AIM-PRO Kit: AIM-PRO with Adapter Ring #62, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, MICH Helmet Mount Assembly USA #107, Extended Rail Adapter #85, Mil-Standard Hard Shipping/Storage Case #101

随附配件

Brow Pads, Helmet/Head Mount Adapter, Head Mount Assembly, Instruction Manual with Warranty Card, Soft carrying Case, Shoulder Strap, Demist Shields, Packing Box, Tethering Cord, 1x AA Batteries, Day Light Filter, Lens Tissue, Sacrificial Window
