Discontinued

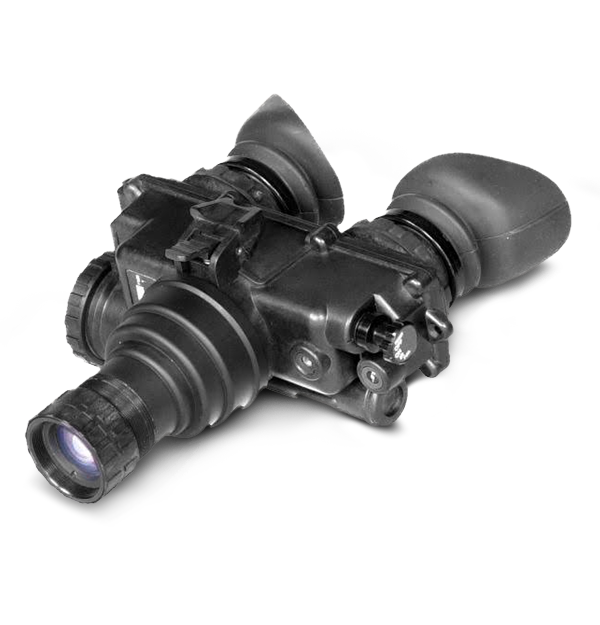

FLIR PVS-7

Night Vision Goggles

Built on the framework of United States Military-commissioned AN/PVS-7 night vision goggles, the FLIR PVS-7 offers enhanced awareness in a classic, battle-tested design. Automatic brightness control, built-in IR illuminator, and an excessive-light cutoff help maintain a tactical advantage in any lighting condition. Flexible mounting options and a rugged composite housing make the PVS-7 a night vision favorite among military and law enforcement professionals.

Dynamic Night Vision in a Classic Design

Head or helmet mounting support hands-free use while flip up/power down display controls allow covert sight adjustments.

Automatic brightness control, onboard IR illuminator, and rugged housing maintain superior vision in the toughest conditions.

Available 3x and 5x magnification lenses convert mounted goggle to handheld long-range night vision viewer.

规格

传感器与光学
亮光切断	Yes (In FOV)
光阴极类型	GaAs
出射光瞳直径[mm]	-
分辨率	64-72 lp/mm
屈光度调节	-6 to +2 dpt
放大率	1x
第IIT代像管等级	Gen 3 Alpha (High Performance)
红外发光器	Yes (built-in , with detachable flood lens)
自动亮度控制	Yes
良视距[mm]	-
视场角	40°
调焦范围	0.25 m to Infinity
镜头系统	F/1.2; 26 mm

环境与认证
存储温度	-50°C to +70°C (-58°F to +158°F)
工作温度	-40°C to +50°C (-40°F to +122°F)

电源
电池低电量指示	Yes
电池寿命	Up to 40 hours
电源	2x AA 1.5V or 1x BA-5567/U Lithium (3V)
自动关机	Yes (In FOV)

文件存储和通讯
远程控制	-

UI-UX
十字线颜色	-
手动增益控制	No
红外指示器	Yes

系统概览
保修	2 Years
十字线类型	-
轨道之上观测装置轴线的高度	-
风阻_仰角调节	-

物理
三脚架	-
产品重量	0.68 kg (1.5 lbs)
尺寸（长 x 宽 x 高）	200 x 152 x 90 mm (7.9 x 6.0 x 3.5 in)

配件
可选附件	5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, MICH Helmet Mount Assembly USA #107, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR850 Detachable X-Long Range Infrared Illuminator, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, Mil-Standard Hard Shipping/Storage Case #101
随附配件	Packing Box, 2x AA-batteries, Neck Lenyard, Instruction Manual with Warranty Card, Soft carrying Case, Head Mount Assembly, Brow Pads, Demist Shields, Sacrificial Window, Shoulder Strap, Lens Tissue

配件

可选附件

5x Afocal Magnifier Lens #100, 3x Afocal Magnifier Lens #99, PASGT Helmet Mount Assembly USA #108, MICH Helmet Mount Assembly USA #107, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR850 Detachable X-Long Range Infrared Illuminator, 5x Afocal Lens with Adapter #24/#25, 3x Afocal Lens #22 with Adapter #24/#25, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, Mil-Standard Hard Shipping/Storage Case #101

随附配件

Packing Box, 2x AA-batteries, Neck Lenyard, Instruction Manual with Warranty Card, Soft carrying Case, Head Mount Assembly, Brow Pads, Demist Shields, Sacrificial Window, Shoulder Strap, Lens Tissue
