Discontinued

QL320

Quantitative Optical Gas Imaging System for FLIR G-Series Optical Gas Imaging Cameras (Gx620/Gx320/G620)

The QL320 by Providence Photonics is a quantitative optical gas imaging (QOGI) system that allows surveyors to measure the leak rates for methane and other hydrocarbons. This eliminates the need for secondary sampling with a toxic vapor analyzer or similar tool. Plus, the QL320 does not require close contact with the gas in order to measure emission rates, making it a safer solution for quantifying gas leaks.

With the QL320, you can determine mass leak rates (g/h or lb/h) or volumetric leak rates (cc/min or L/min)for most hydrocarbon gases. Measure the size of fugitive emissions from safe distances, as far as 100 feet.

The QL320 has the built-in tools needed to validate leak surveys, plus a Δ temperature screening tool to determine suitablility of background conditions. In-field reporting includes archiving of measurements, colorized video and raw data for analysis and post-processing.

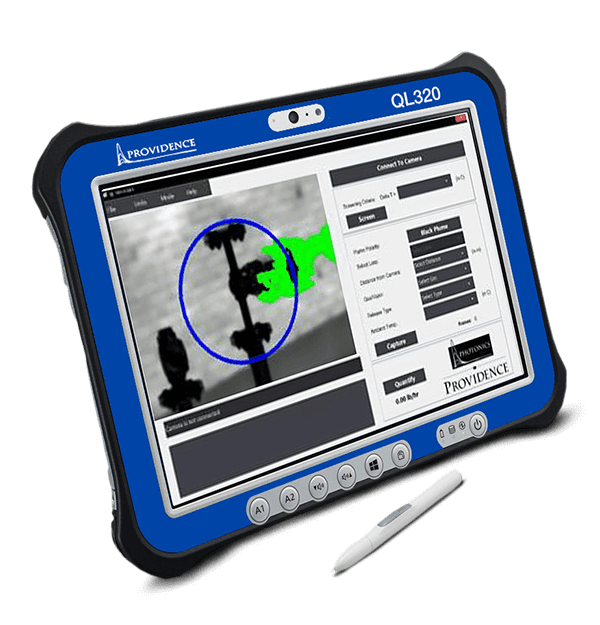

This tablet-based system is rugged enough to use in gas fields, refineries, and other industrial settings. The dust- and water-tight touchscreen provides high contrast for easy reading in outdoor conditions.

规格

成像与光学
兼容相机	FLIR GF620, FLIR GFx320, FLIR GF320
图像模式	Single image snapshot with colorized plume and quantitative result
显示屏分辨率	1920 × 1200 WUXGA
显示屏尺寸	256.5 mm

测量与分析
测量工具	温差扫描，屏幕蓝色高亮，批量录入、现场气体校准
测量模式	质量泄漏率（lb/h或g/h），体积泄漏率（cc/min或L/min)
