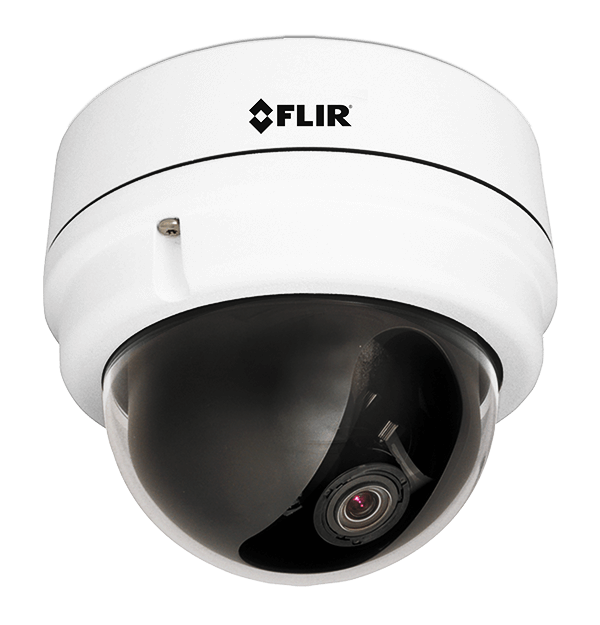

Quasar 1080p Mini-Dome
规格
| 合规性与认证 | |
|---|---|
| USA | 4 Years |
| 国际 | 4 Years |
| 网络安全 | |
|---|---|
| 安全性 | User account and password protection |
| 环境 | |
|---|---|
| 存储温度 | –20° to 70° C (–4° to 158° F) |
| 工作温度 | Indoor: 0° to 50° C (32° to 122° F) Outdoor: –30° to 50° C (–22° to 122° F) |
| 湿度 | 95% (non–condensing) |
| 常规 | |
|---|---|
| 3D降噪 | On / Off – 6 levels |
| AES | 1.0 to 1 / 10,000 (auto) |
| 保修 | 4 Years |
| 功耗 | 6W indoor or 13W outdoors with heater / fan / IR |
| 压缩 | Fully compliant multi-stream H.264 main profile + MJPEG |
| 固件升级 | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| 外壳 | Indoor: Tamper resistant surface mount plastic case or Indoor/Outdoor: IK10 rated vandal IP66 |
| 尺寸 | Indoor / Outdoor: 151 x 130 mm (5.9 x 5.1 in.) |
| 检测位置移动 | On / Off |
| 电源连接 | AC / DC terminal block or PoE |
| 白天/夜间模式 | Smart IR / auto / on/off |
| 磁泡F制光圈 | F0.0 - clear bubble / F1.0 - smoke bubble (option) |
| 磁泡等级 | IK10 vandal resistant polycarbonate |
| 装置重量 | Indoor: 0.8 Kg (1.8 lbs.) Outdoor: 1.3 Kg (2.9 lbs.) |
| 输入电压 | 12 VDC / 24 VAC ±10% or 802.3af PoE |
| 隐私区域 | On / Off – 5 zones |
| 测量与分析 | |
|---|---|
| 自动增益控制 | Auto |
| PTZ | |
|---|---|
| 方位/俯仰云台旋转 | 350, 350 and ±90° |
| 系统集成 | |
|---|---|
| 以太网 | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| 双向音频 | Full duplex, line / mic in and line out, G.711, G.726 |
| 峰值发射波长[nm] | 850 |
| 支持的网络浏览器 | Internet Explorer 6.0+ |
| 照明角度 | Full 90° |
| 红外LED灯数目 | 24 |
| 网络协议 | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| 距离 | 15 m (50 ft.) |
| 输入 | 1 dry alarm contact |
| 输出 | 1 relay contact, 60V AC / DC at 130 mA maximum |
| 配置 | Remote: via web access or supported video management software |
| 音频连接 | Terminal block |
| 热像仪 | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| 图像传感器 | 1/2.7" CMOS |
| 灵敏度 | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| 可见光相机 | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| WDR | On / Off – 3 levels |
| 传感器分辨率 | 2.1MP 1920 x 1080 |
| 信噪比 | ±50 dB |
| 图像传感器 | 1/2.7" CMOS |
| 带宽 | Configurable between 64Kbps and 8Mbps |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| 白平衡 | Auto / indoor / outdoor |
| 红外成像系统（Iris）控制 | DC auto |
| 背光补偿 | On / Off |
| 镜头类型 | Varifocal: 3-9 mm F1.2 Auto IrisD/N Horizontal viewing angle: 36.7 to 110° Optional motorized with auto-focus |
| 视频和录制 | |
|---|---|
| SD卡记录 | SDHC up to 32 GByte |
| 分辨率范围 | Scalable from CIF to HD 1080p |
| 最高性能 | H.264 30/25 FPS @ HD 1080 + 30/25 FPS @ D1 or 30+30 / 25+25 @ HD720 |
| 视频运动检测 | Up to 10 independent zones |
| 速率控制 | CBR/VBR |
