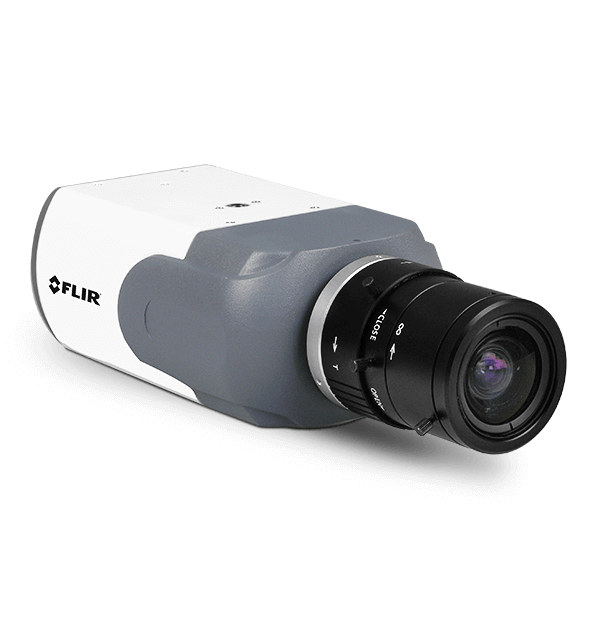

Quasar 1080p Fixed
Highest Quality. Lowest Bandwidth. Predictable Storage.
Quasar’s high performance broadcast video quality in an HD 1080p fixed camera guarantees frame rates in high motion, complex and low-light scenes found in city surveillance applications, airports, terminals, critical infrastructure sites, campuses and commercial installations.
规格
| 网络安全 | |
|---|---|
| 安全性 | User account and password protection |
| 常规 | |
|---|---|
| 3D降噪 | On / Off - 6 levels |
| AES | 1.0 to 1 / 10,000 (auto) |
| 固件升级 | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| 扫描模式 | Progressive |
| 检测位置移动 | On / Off |
| 白天/夜间模式 | Smart IR / auto / on / off |
| 隐私区域 | On / Off - 5 zones |
| 测量与分析 | |
|---|---|
| 自动增益控制 | Auto |
| 系统集成 | |
|---|---|
| 以太网 | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| 双向音频 | Full duplex, line / mic in and line out, G.711, G.726 |
| 网络协议 | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| 配置 | Remote: via web access or supported video management software |
| 音频连接 | 3.5 mm audio jacks |
| 可见光相机 | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| 传感器分辨率 | 1920 x 1080 |
| 信噪比 | ≥50 dB |
| 图像传感器 | 1/2.7" HD 1080 CMOS |
| 宽动态范围 | On / Off - 3 levels |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | Color: 0.1 Lux @ f1.4 / Night Mode: 0.03 Lux @ F1.4 at 30 IRE |
| 白平衡 | Auto / indoor / outdoor |
| 红外成像系统（Iris）控制 | DC auto |
| 背光压缩 | On / Off |
| 视频和录制 | |
|---|---|
| SD卡记录 | SDHC up to 32GByte |
| 分辨率范围 | Scalable from CIF to HD1080 (1920x1080) |
| 最高性能 | H.264 30/25 FPS @ HD1080 + 30/25 FPS @ D1 or 30+30 / 25+25 @ HD720 |
| 视频压缩 | Fully compliant multi-stream H.264 main profile + MJPEG |
| 视频带宽 | Configurable between 64Kbps and 8Mbps |
| 视频运动检测 | On / Off - 10 zones |
| 速率控制 | CBR/VBR |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Quasar Gen 1 - 20161103
Software Download
FLIR DNA Software - Version 2.3.0.35
Firmware Release Note
FLIR Quasar Gen I Firmware Release Notes Version dt20161103NSA
Tech Note
FLIR Best Practices Guide for Perimeter Security Applications
User Manual
FLIR Cyber Hardening Guide
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
