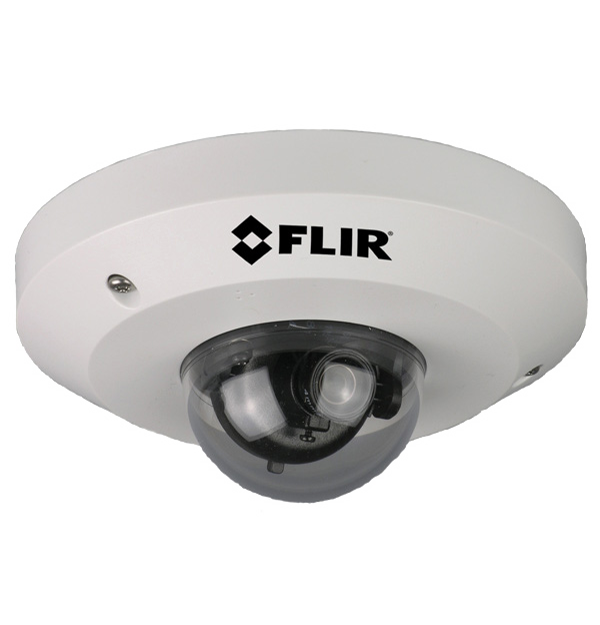

Quasar 1080p Low Profile
规格
| 合规性与认证 | |
|---|---|
| USA | UL FCC Part 15 (subpart B, class A) |
| 国际 | CE marked, EN55022-1998 class A, EN55024, RoHS |
| 网络安全 | |
|---|---|
| 安全性 | User account and password protection |
| 环境 | |
|---|---|
| 存储温度 | –20° to 70° C (–4° to 158° F) |
| 工作温度 | 0° to 50° C (32° to 122° F) |
| 湿度 | 95% (non–condensing) |
| 常规 | |
|---|---|
| 3D降噪 | On / Off – 6 levels |
| AES | 1.0 to 1 / 10,000 (auto) |
| 保修 | According to DVTEL RMA Policy and Process Notice document |
| 功耗 | 3.5W |
| 压缩 | Fully compliant multi–stream H.264 main profile + MJPEG |
| 固件升级 | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| 夜间模式 | Digital night mode |
| 尺寸 | Indoor: 110.2 x 47.7 mm (4.3 x 1.9 in.) |
| 扫描模式 | Progressive |
| 检测位置移动 | On / Of |
| 电源 | 802.3af PoE |
| 电源连接 | PoE |
| 磁泡F制光圈 | F0.0 - clear bubble |
| 装置重量 | 180 g (0.40 lbs.) |
| 隐私区域 | On / Off – 5 zones – 8 colors |
| PTZ | |
|---|---|
| 方位/俯仰云台 | 160° Pan / 90° Tilt |
| 系统集成 | |
|---|---|
| 以太网 | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| 支持的网络浏览器 | Internet Explorer 6.0+ |
| 网络协议 | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP,HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF Profile S, IEEE 802.1X |
| 配置 | Remote: via web access or supported video management software |
| 热像仪 | |
|---|---|
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| 图像传感器 | 1/2.7" HD 1080 CMOS |
| 灵敏度 | 0.5 (color) measured with DSS OFF at 30 IRE |
| 可见光相机 | |
|---|---|
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| WDR | On / Off – 3 levels |
| 传感器分辨率 | 2.1MP 1920x1080 |
| 信噪比 | ±50 dB |
| 图像传感器 | 1/2.7" HD 1080 CMOS |
| 带宽 | Configurable between 64Kbps and 8Mbps |
| 机械式红外滤光片 | No |
| 灵敏度 | 0.5 (color) measured with DSS OFF at 30 IRE |
| 镜头类型 | 4mm F1.5 / 78° HFOV 2.8mm F2.0 / 110° HFOV |
| 视频和录制 | |
|---|---|
| SD卡记录 | SDHC/SDXC up to 32GByte |
| 分辨率范围 | Scalable from CIF to HD 1080p |
| 最高性能 | 30fps@HD1080p + 30fps@D1 or 15+15@HD1080p |
| 视频运动检测 | Up to 10 independent zones |
| 速率控制 | CBR/VBR |
