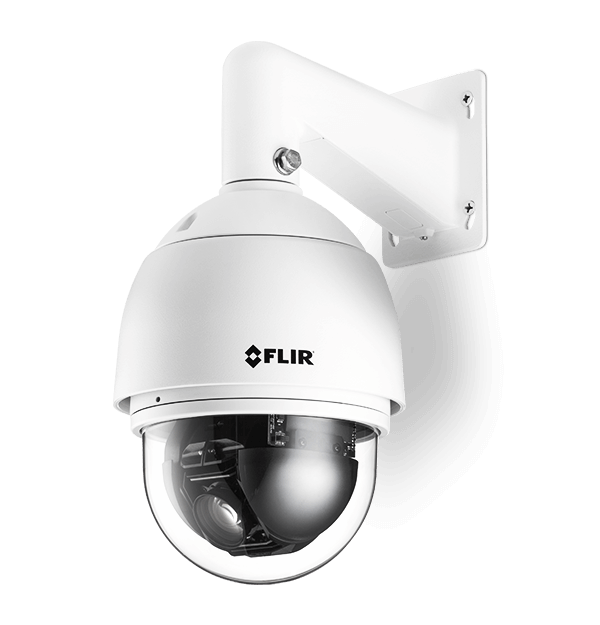

Quasar 1080p PTZ Camera
PTZ Security Camera
The Quasar HD 1080p PTZ security camera produces broadcast-video quality and guaranteed frame rates in high motion, complex and low light scenes, such as airports, urban streets, critical infrastructure, commercial offices and college campuses. The FLIR Quasar CP-4221-30x HD PTZ delivers one of the lowest bandwidths in the industry due to advanced H.264 motion processing.
规格
| 合规性与认证 | |
|---|---|
| USA | UL, FCC Part 15 (subpart B, class A) |
| 国际 | CE marked, EN55022-1998 class A, EN55024, RoHS |
| 网络安全 | |
|---|---|
| 安全性 | User account and password protection |
| 环境 | |
|---|---|
| 存储温度 | -20° to 70° C (-4° to 158° F) |
| 工作温度 | CP-4221-300: 0° to 40° C (32° to 104° F) |
| 湿度 | 95% (non-condensing) |
| 常规 | |
|---|---|
| 3D降噪 | On / Of |
| AGC控制 | Auto / Manual |
| 保修 | According to FLIR RMA Policy and Process Notice document |
| 功率损耗后恢复 | Yes |
| 功耗 | Max 20W indoor (CP-4221-300), Max 60W outdoor (CP-3221-301) with heater operating |
| 固件升级 | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| 外壳防护等级 | Tamper resistant surface mount or IK10 rated vandal IP66 outdoor housing |
| 尺寸 | CP-4221-300: 171.7 x 228.71 mm (6.76 x 9 in.) |
| 扫描模式 | Progressive |
| 检测位置移动 | On / Of |
| 电源连接 | Terminal block |
| 白天/夜间：红外截止滤光片 | Auto / Manual |
| 磁泡F制光圈 | F0.0 - clear bubble |
| 磁泡等级 | IK10 vandal resistant polycarbonate |
| 装置重量 | CP-4221-300: 1.62 Kg (3.57 lbs.) |
| 输入电压 | PoE++ 802.3at 60W (indoor/outdoor), PoE+ 802.3at 25W (indoor only), AC 24V ±10% |
| 隐私区域 | On / Off - 16 zones |
| 测量与分析 | |
|---|---|
| 最高分辨率 | 1920x1080 (HD 1080p) |
| PTZ | |
|---|---|
| 俯仰云台行程 | -10° to 190° |
| 回零功能 | Preset / Sequence / Auto Pan / Pattern |
| 序列 | 8.0 |
| 成比例方位与俯仰云台 | On / Off (pan and tilt speed proportional to zoom ratio) |
| 手动速度 | 0.13° to 90° / sec |
| 方位角行程 | 360° continuous |
| 最大方位角/俯仰角速度 | 400° / sec |
| 模式 | 8.0 |
| 水平视角 | 65.3° (Wide) to 2.2° (Tele) |
| 自动方位 | 4.0 |
| 自动翻转 | Digital / Mechanical / Off |
| 预设值 | 256.0 |
| 预设精度 | 0.225° |
| 预设速度 | 5° to 400° / sec |
| 系统集成 | |
|---|---|
| 以太网 | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| 双向音频 | Full duplex, line / mic in and line out, G.711, G.726 |
| 报警 | Input: 4 dry alarm contact Output: 2 relay contact, 30 VDC at 2A or 125 VAC at 0.5A max |
| 报警反应 | Preset / Sequence / Auto Pan / Pattern |
| 支持的网络浏览器 | Internet Explorer 6.0+ |
| 网络协议 | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, IEEE 802.1X, QoS,ONVIF Profile S |
| 配置 | Remote: via web access or supported video management software |
| 音频带宽 | Configurable between 16 kbps & 64 Kbps (depending on compression method) |
| 音频连接 | Terminal block |
| 热像仪 | |
|---|---|
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| 光学变焦 | 30x |
| 图像传感器 | 1/2.8" CMOS |
| 图像稳定 | On / Of |
| 数字变焦 | 1 to 12 variable |
| 最低照度 | 0.3 (color) / 0.04 (BW), measured with DSS Off at 30 IRE |
| 焦距 | 4.3 to 129 mm |
| 可见光相机 | |
|---|---|
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| 传感器分辨率 | 1920 x 1080 |
| 信噪比 | ±50 dB |
| 光学变焦 | 30x |
| 图像传感器 | 1/2.8" CMOS |
| 图像旋转 | Normal / Flip / Mirror |
| 图像稳定 | On / Of |
| 宽动态范围（多快门挡板） | On / Of |
| 数字变焦 | 1 to 12 variable |
| 最低照度 | 0.3 (color) / 0.04 (BW), measured with DSS Off at 30 IRE |
| 焦距 | 4.3 to 129 mm |
| 白平衡 | Auto / Indoor / Outdoor / ATW / Manual |
| 红外成像系统（Iris）控制 | Auto / Manual |
| 背光补偿 | On / Of |
| 调焦模式 | Auto / Manual |
| 视频和录制 | |
|---|---|
| SD卡记录 | SDXC up to 64 GByte |
| 分辨率范围 | Scalable from CIF to HD 1080p |
| 最高性能 | 30fps @ HD 1080p + 30fps @ D1 or 15+15 @ HD 1080p |
| 视频压缩 | Dual Streaming H.264 / H.264 or H.264 / MJPEG |
| 视频带宽 | Configurable between 64 Kbps and 8 Mbps |
| 视频运动检测 | On / Off - up to 10 independent zones |
| 速率控制 | CBR / VBR |
