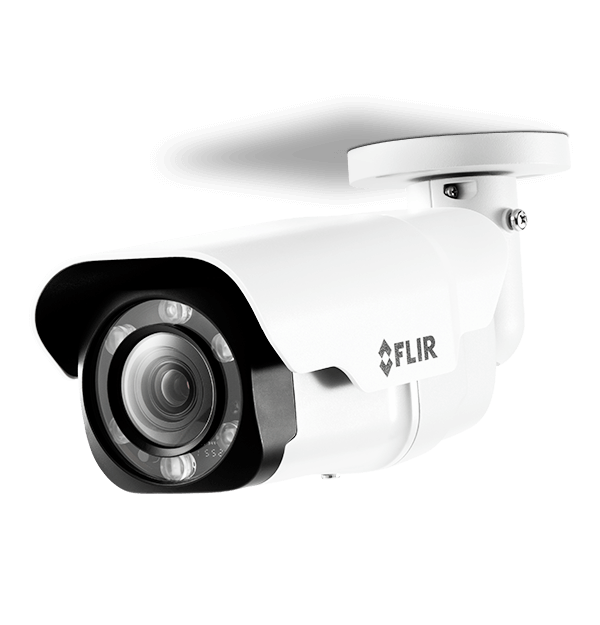

Quasar 4K Ultra HD Bullet
4K Ultra HD Bullet
The Quasar 4K Ultra Bullet security cameras features 4K Ultra HD resolution. With its broadcast-level motion processing architecture, the camera uses the industry’s lowest bandwidth, while delivering predictable storage. Ther result is lower utility costs and reduced Total Cost of Ownership (TCO).
规格
| 合规性与认证 | |
|---|---|
| USA | UL, FCC Part 15 (subpart B, class A) |
| 网络安全 | |
|---|---|
| 安全性 | User account with password protection and IP filter |
| 环境 | |
|---|---|
| 存储温度 | -20° to 70° C (-4° to 158° F) |
| 工作温度3 | -40° to 50° C (-40° to 122° F) |
| 常规 | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| 保修 | According to FLIR RMA Policy and Process Notice document |
| 功耗 | 6W indoor or 13W outdoors with heater / IR |
| 固件升级 | Flash memory for upgrade of camera firmware over the network (1GB Flash / 8GB RAM) |
| 扫描模式 | Progressive |
| 检测位置移动 | On / Off / schedule |
| 电源连接 | AC / DC terminal block or PoE |
| 白天/夜间模式 | Smart / Auto / On / Off |
| 输入电压 | 12 VDC / 24 VAC ±10% or 802.3af PoE (Class 0) |
| 隐私区域 | On / Off - 5 zones |
| 测量与分析 | |
|---|---|
| 自动增益控制 | Auto |
| PTZ | |
|---|---|
| 方位/俯仰云台旋转 | 360, ±90° and 360 |
| 系统集成 | |
|---|---|
| 以太网 | 10/100/1000 Ethernet, auto sensing, half/full duplex (RJ45) |
| 双向音频 | Full duplex, line in and line out, G.711, G.726 |
| 报警输入 | 1 dry alarm contact |
| 报警输出 | 1 relay contact, 300V AC / DC at 130 mA maximum |
| 支持的网络浏览器 | Internet Explorer 9+ |
| 照明角度 | Full 60° |
| 红外LED灯数目 | 6 high power / high efficiency SMD type |
| 红外测温距离 | up to 40 m (131 ft.) |
| 网络协议 | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| 输入 | 1 dry alarm contact |
| 输出 | 1 relay contact, 300V AC / DC at 130 mA maximum |
| 远程配置 | via web browser or supported video management software |
| 音频连接 | Terminal block |
| 可见光相机 | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| 传感器分辨率 | 4072 x 3076 |
| 信噪比 | ±50 dB |
| 图像传感器 | 1/1.7" BSI CMOS |
| 宽动态范围 | On / Off - 3 levels |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| 白平衡 | Auto / indoor / outdoor / ATW / manual |
| 红外成像系统（Iris）控制 | P-iris |
| 背光压缩 | On / Off |
| 镜头类型 | CB-6208-11-I: Varifocal 3.5-8mm, 116°-50° HFOV, F1.4 CB-6208-21-I: Varifocal 9-22mm, 45°-18° HFOV, F1.4 Motorized with auto-focus, Auto-Iris/P-Iris, D/N |
| 降噪 | 2D / 3D / Color |
| 视频和录制 | |
|---|---|
| SD卡记录2 | Micro SDXC up to 128GB (Class 10) |
| 分辨率范围 | Scalable from CIF to UHD 4K |
| 最高性能 | H.264 30/25 FPS @ 4K (NTSC/PAL) or H.264 15/12 FPS @ 4K + 1080p + 720p + D1 (NTSC/PAL) |
| 视频压缩 | Fully compliant multi-stream H.264 main/high/SVC/baseline profile + MJPEG (FHD) |
| 视频带宽 | Configurable between 64Kbps and 20Mbps |
| 视频运动检测 | On / Off / schedule |
| 速率控制 | CBR/VBR |
资源和支持
Note: You must be logged in to download software or firmware. Login or create an account.
Firmware Download
Quasar CM-6206 Firmware (v. 20160805)
Software Download
FLIR DNA Software - Version 2.3.0.35
User Manual
FLIR Cyber Hardening Guide
Software Release Note
FLIR Discovery Network Assistant (DNA) Software Release Note v2.3.0.35
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
