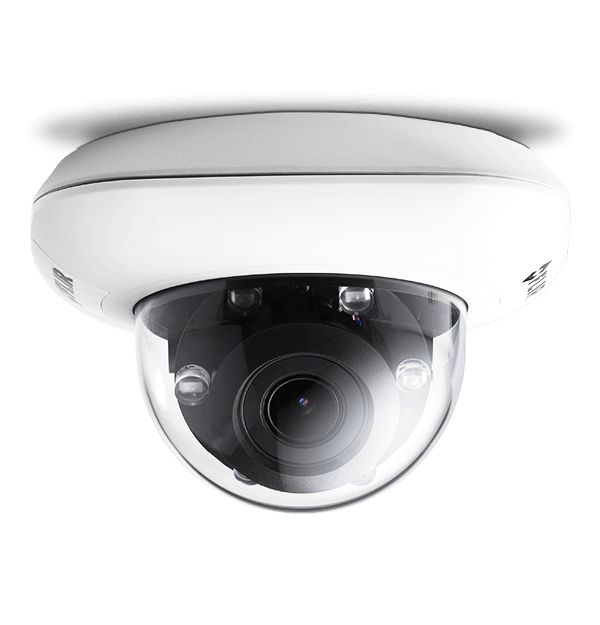

Quasar 4K Ultra HD Mini-Dome
Small form factor. Highest quality. Lowest bandwidth. Predictable storage
The latest generation of the Ariel camera series sets a new standard in its class. This small form factor mini-dome combines the latest sensor technology with 4K UHD / Quad HD resolution, Shutter Wide Dynamic Range, IR Illumination and H.264/H.265 compression, to deliver the highest quality video at the lowest bandwidth. The result is reduced Total Cost of Ownership (TCO), through network and storage infrastructure savings.
规格
| 常规 | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| 扫描模式 | Progressive |
| 检测位置移动 | On / Off / schedule |
| 白天/夜间模式 | Smart / Auto / On / Off |
| 隐私区域 | On / Off - 5 zones |
| 测量与分析 | |
|---|---|
| 自动增益控制 | Auto |
| 系统集成 | |
|---|---|
| 双向音频 | Full duplex, line in and line out, G.711, G.726 |
| 峰值发射波长[nm] | 850.0 |
| 照明角度 | Full 60° |
| 红外LED灯数目 | 6 high power / high efficiency SMD type |
| 红外测温距离 | up to 40 m (131 ft.) |
| 音频连接 | Terminal block |
| 可见光相机 | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| 传感器分辨率 | 4072 x 3076 |
| 信噪比 | ±50 dB |
| 图像传感器 | 1/1.7" BSI CMOS |
| 宽动态范围 | On / Off - 3 levels |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| 白平衡 | Auto / indoor / outdoor / ATW / manual |
| 红外成像系统（Iris）控制 | P-iris |
| 背光压缩 | On / Off |
| 镜头类型 | CM-6208-11-I: Varifocal 3.5-8mm, 116°-50° HFOV, F1.4 CM-6208-21-I: Varifocal 9-22mm, 45°-18° HFOV, F1.4 Motorized with auto-focus, Auto-Iris/P-Iris, D/N |
| 降噪 | 2D / 3D / Color |
| 视频和录制 | |
|---|---|
| SD卡记录2 | Micro SDXC up to 128GB (Class 10) |
| 分辨率范围 | Scalable from CIF to UHD 4K |
| 最高性能 | H.264 30/25 FPS @ 4K4 (NTSC/PAL) or H.264 15/12 FPS @ 4K + 1080p + 720p + D1 (NTSC/PAL) |
| 视频压缩 | Fully compliant multi-stream H.264 main/high/SVC/ baseline profile + MJPEG (FHD) |
| 视频带宽 | Configurable between 64Kbps and 20Mbps |
| 视频运动检测 | On / Off / schedule |
| 速率控制 | CBR/VBR |
