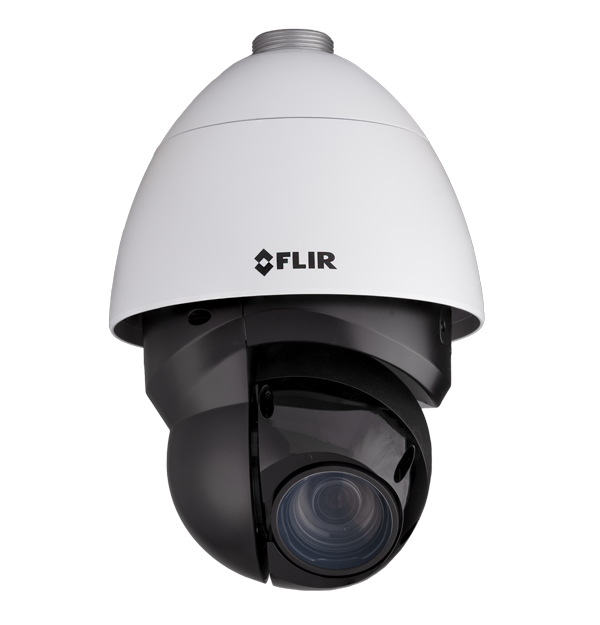

Quasar™ CP-6408-31-IA
Premium 4K IR PTZ Security Camera with Edge AI
Experience unmatched surveillance performance with the Quasar CP-6408-31-IA Premium 4K IR PTZ camera. Designed for critical infrastructure and wide-area monitoring, this powerful pan-tilt-zoom camera delivers ultra-sharp 4K resolution with optical zoom precision to capture every detail—even at extreme distances. With built-in Edge AI analytics, the CP-6408-31-IA intelligently detects and classifies people, vehicles, and potential threats in real time—reducing false alarms and enabling faster, more informed responses. Rugged, reliable, and engineered for 24/7 operation in challenging environments, the CP-6408-31-IA is the smart choice for organizations demanding next-level situational awareness.
The CP-6408-31-IA pan-tilt-zoom camera delivers stunning ultra-high-definition imaging with up to 31x optical zoom, allowing operators to identify fine details across vast areas without sacrificing clarity. Whether monitoring perimeters, parking lots, or large-scale facilities, these cameras provide crystal-clear visuals both day and night, ensuring nothing goes unnoticed, even from a distance.
Built-in Edge AI analytics elevate situational awareness by automatically detecting, classifying, and tracking objects such as people and vehicles in real time. This onboard intelligence minimizes false alarms and supports faster decision-making by prioritizing only the most relevant security events, with no server required. It’s proactive monitoring that adapts to dynamic environments.
Designed for critical infrastructure and mission-critical deployments, the CP-6408-31-IA is built to perform in challenging weather, lighting, and environmental conditions. With powerful infrared illumination and robust environmental housing, these cameras offer dependable 24/7 performance, making them ideal for airports, ports, city surveillance, and remote or high-risk sites.
规格
| Analytics | |
|---|---|
| Video Analytics | Abandoned object Intrusion detection Camera sabotage Wrong direction Loitering detection Object counting Object removal Stopped vehicle Face detection PTZ auto tracking |
| 合规性与认证 | |
|---|---|
| USA | FCC Part 15 (subpart B, class A, ICES-003) |
| 兼容ONVIF网络视频协议 | Profiles S, G, M & T |
| 国际 | CE marked, EN 61000-6-3, EN 62368-1, EN 50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A, BIS, UKCA/UKNI |
| 网络安全 | |
|---|---|
| 安全性 | Password protection IP address filtering TLS/HTTPS IEEE 802.1X network access control Digest authentication Password policy Protect from multiple failure login |
| 环境 | |
|---|---|
| De-Icing\Defogging | Yes |
| Integrated Hardware | 4K 31x Zoom f/1.35 Camera with Wiper: Wiper 4K 22x Zoom f/1.5 Camera: NA |
| Safety Cable | Yes |
| 存储温度 | -20°C to 70°C (-4°F to 158°F) |
| 工作温度 | -40°C to 60°C (-40°F to 140°F) with heater 10% to 90%, no condensation |
| 湿度 | 10% to 90% (non-condensing) |
| 常规 | |
|---|---|
| 保修 | According to FLIR RMA Policy and Process Notice document |
| 功耗 | 4K 31x Zoom f/1.35 Camera with Wiper: Max 56.65 W (including heaters and IR LEDs) 4K 22x Zoom f/1.5 Camera: Max 59.39 W (including heaters and IR LEDs) |
| 压缩 | Enhanced H.265 Main Profle + Enhanced H.264 Main/ High/Baseline Profle + MJPEG |
| 固件升级 | Flash memory for upgrade of camera firmware over the network |
| 外壳防护等级 | IK10, IP66 |
| 尺寸 | 4K 31x Zoom f/1.35 Camera with Wiper: 241 × 349 mm (9.49 × 13.74 in) 4K 22x Zoom f/1.5 Camera: 207 × 300 mm (8.15 × 11.81 in) |
| 快门WDR | 130 dB |
| 扫描模式 | Progressive |
| 检测位置移动 | Yes |
| 电子稳定模块 | Yes |
| 电源连接 | RJ45, AC |
| 白天/夜间模式 | Yes |
| 自动电子快门 [AES] | 1/1 to 1/32,000 |
| 输入电压 | 4K 31x Zoom f/1.35 Camera with Wiper: PoE++ IEEE802.3bt, max 51.00 W 4K 22x Zoom f/1.5 Camera: PoE++ IEEE802.3bt, max 51.00 W AC 24 V, max 59.39 W, max 83.25 VA |
| 重量 | 4K 31x Zoom f/1.35 Camera with Wiper: 5.5 kg (12.13 lb) 4K 22x Zoom f/1.5 Camera: 3.8 kg (8.38 lb) |
| 隐私区域 | Yes |
| 测量与分析 | |
|---|---|
| 分析技术管理 | Web-based configuration and management, adjustable sensitivity, automatic responses, remote I/O control |
| PTZ | |
|---|---|
| 功率损耗恢复 | Yes |
| 回零功能 | Preset/Sequence/Auto Pan/Pattern |
| 序列-自动方位/模式 | 8/4/8 |
| 成比例方位与俯仰云台 | On/Off (pan and tilt speed proportional to zoom ratio) |
| 手动速度 | Pan: 0.1°–90°/s Tilt: 0.1°–55°/s |
| 方位/俯仰云台行程 | Pan: 0°–360° endless Tilt: -20°–100° |
| 水平视角 | Pan: 0°–360°, endless |
| 自动翻转 | Mechanical/Off |
| 预设值 | 256.0 |
| 预设速度 | Pan: 300°/s Tilt: 300°/s |
| 系统集成 | |
|---|---|
| LED类型 | High efficiency SMD |
| 以太网 | 10/100/1000, IEEE802.3bt, auto sensing 1 × RJ45 |
| 双向音频 | Audio in, terminal block, G.711/G.726/AAC/ LPCM, Audio out |
| 峰值发射波长[nm] | 850 nm |
| 支持的网络浏览器 | Firefox, Chrome, Edge, Safari |
| 网络协议 | IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP, Syslog, LDAP |
| 距离 | 照明角度 | Up to 100 m 6°/30°/90° |
| 输入 | Alarm in × 4, 5 V with 10 KΩ pull up, 100 mA @ room temperature |
| 输出 | Alarm out × 2, Terminal Block, 400 V DC/AC, 120 mA |
| 远程配置 | Via web browser or supported video management software |
| 热像仪 | |
|---|---|
| DSS | Default 1/4; options of 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| 分辨率 | 3864 × 2180 (4K) |
| 图像传感器 | 1/1.8”CMOS |
| 灵敏度 | 4K 31x Zoom f/1.35 Camera with Wiper: Color: 0.009 lux, B/W: 0.006 lux 4K 22x Zoom f/1.5 Camera: Color: 0.169 lux, B/W: 0.113 lux |
| 可见光相机 | |
|---|---|
| DSS | Default 1/4; options of 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| 信噪比 | ±45 dB |
| 分辨率 | 3864 × 2180 (4K) |
| 图像传感器 | 1/1.8”CMOS |
| 带宽 | Configurable between 64 Kbps and 20 Mbps |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | 4K 31x Zoom f/1.35 Camera with Wiper: Color: 0.009 lux, B/W: 0.006 lux 4K 22x Zoom f/1.5 Camera: Color: 0.169 lux, B/W: 0.113 lux |
| 白平衡 | Auto/ATW/Manual/One Push |
| 背光补偿 | On/Off in linear mode |
| 镜头类型 | 4K 31x Zoom f/1.35 Camera with Wiper: 31× zoom lens, P-Iris, Auto-Iris, f/1.35,
6.9–214.6 mm 4K 22x Zoom f/1.5 Camera: 22× Zoom lens, P-Iris, Auto-Iris, F 1.5, 6.4–138.5 mm |
| 降噪 | 3D/2D/Color NR |
| 视频和录制 | |
|---|---|
| SD卡记录 | microSD/microSDHC/microSDXC size up to 1 TB (excluding countries where disallowed); file encryption |
| 分辨率范围 | 320 × 480 to 3840 × 2160 @30 fps |
| 最高性能 | Up to 4 individually configurable streams in H.265/H.264/MJPEG Configurable resolution/frame rate/bandwidth/ LBR/ VBR/CBR in H.265/H.264 |
| 视频运动检测 | Yes |
| 速率控制 | LBR, CBR, VBR |
