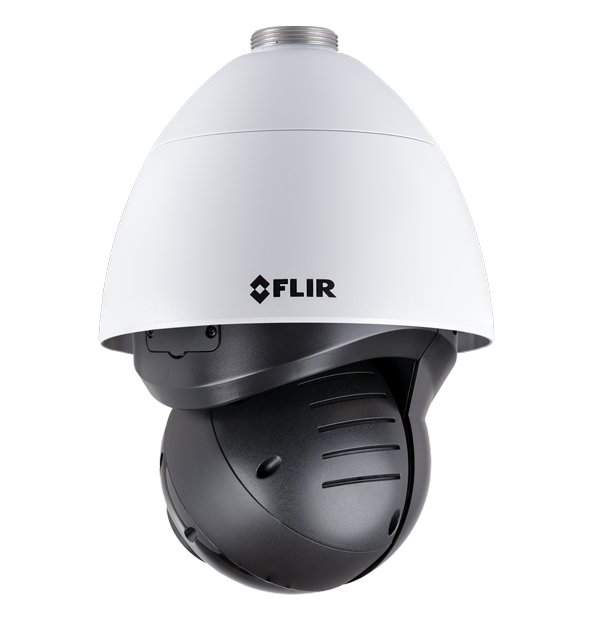

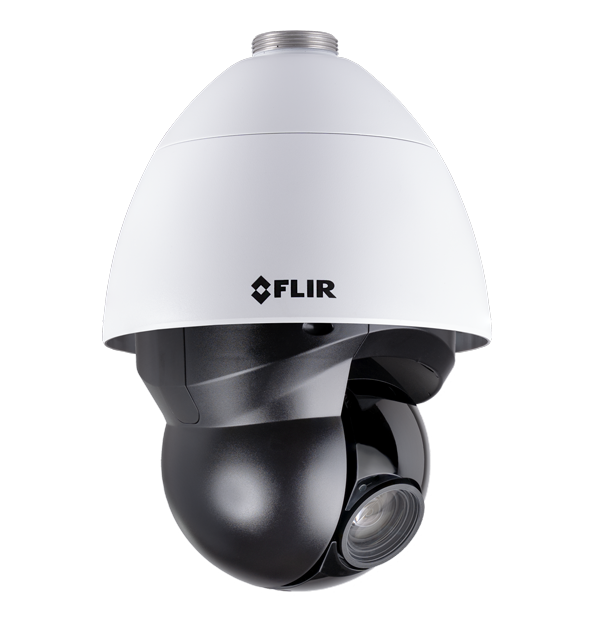

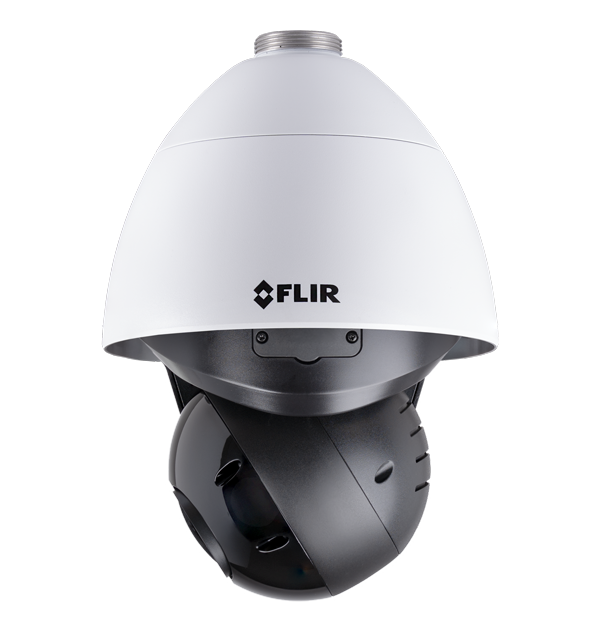

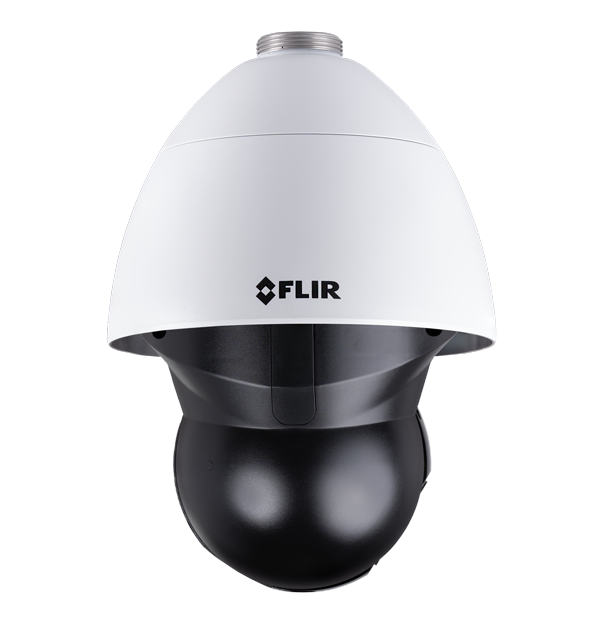

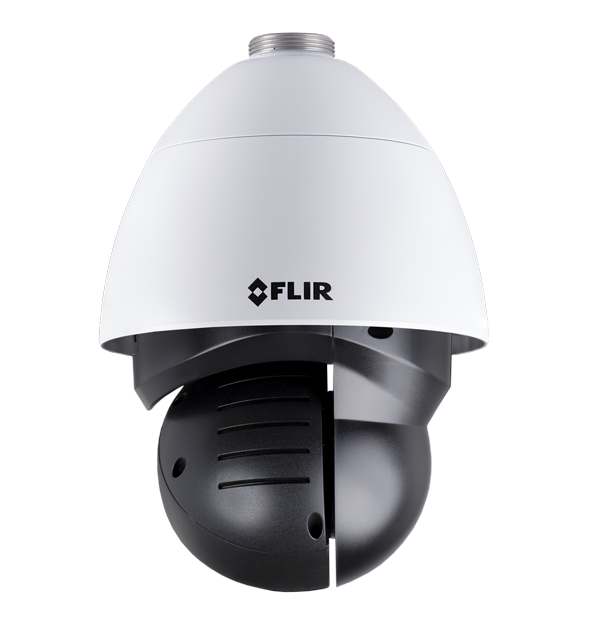

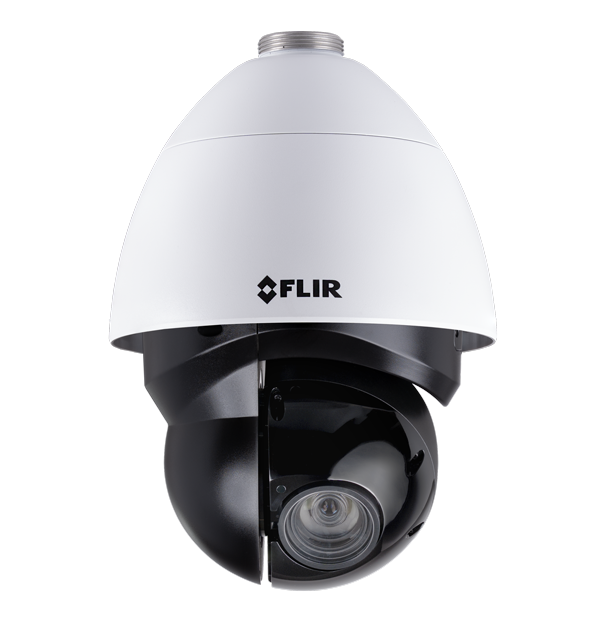

Quasar™ CP-6402-41-IA
Premium 1080p IR PTZ 40x Zoom Camera With Edge AI
The Quasar CP-6402-41-IA 1080p IR PTZ camera combines powerful 40x optical zoom with crystal-clear full HD resolution, giving security teams the ability to monitor expansive areas and capture fine details from long distances. Designed for performance in low-light and nighttime conditions, its integrated infrared illumination ensures round-the-clock visibility. The camera employs Edge AI analytics to intelligently detect and classify people and vehicles in real time, enhancing situational awareness while reducing false alarms. Engineered for reliability in the toughest environments, this high-speed PTZ is ideal for safeguarding critical infrastructure, urban spaces, and perimeter security zones.
The Quasar CP-6402-41-IA delivers powerful long-range surveillance with an impressive 40x optical zoom, allowing operators to capture detailed images across vast distances. Whether you're monitoring large perimeters, city streets, or open industrial zones, this camera ensures that even the most distant objects remain in sharp focus, without compromising image quality.
Equipped with Edge AI analytics, the CP-6402-41-IA detects, tracks, and classifies people and vehicles in real time directly on the device. This smart processing reduces false alarms, improves event accuracy, and empowers security teams to respond faster and more effectively to potential threats.
With built-in infrared illumination and a robust design built to withstand harsh weather and environmental conditions, the CP-6402-41-IA provides 24/7 operational reliability. It's an ideal solution for outdoor surveillance in critical infrastructure, transportation hubs, and other demanding security applications where uptime and visibility are non-negotiable.
规格
| Analytics | |
|---|---|
| Video Analytics | Abandoned object Intrusion detection Camera sabotage Wrong direction Loitering detection Object counting Object removal Stopped vehicle Face detection PTZ auto tracking |
| 合规性与认证 | |
|---|---|
| USA | FCC Part 15 (subpart B, class A, ICES-003) |
| 兼容ONVIF网络视频协议 | Profiles S, G, M & T |
| 国际 | CE marked, EN 61000-6-3, EN 62368-1, EN 50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A, BIS, UKCA/UKNI |
| 网络安全 | |
|---|---|
| 安全性 | Password protection IP address filtering TLS/HTTPS IEEE 802.1X network access control Digest authentication Password policy Protect from multiple failure login |
| 环境 | |
|---|---|
| De-Icing\Defogging | Yes |
| Safety Cable | Yes |
| 存储温度 | -20°C to 70°C (-4°F to 158°F) |
| 工作温度 | -40°C to 60°C (-40°F to 140°F) with heater 10% to 90%, no condensation |
| 湿度 | 10% to 90% (non-condensing) |
| 常规 | |
|---|---|
| 保修 | According to FLIR RMA Policy and Process Notice document |
| 功耗 | Max 59.39 W (including heaters, IR LEDs) |
| 压缩 | Enhanced H.265 Main Profile + Enhanced H.264 Main/ High/Baseline Profile + MJPEG |
| 固件升级 | Flash memory for upgrade of camera firmware over the network |
| 外壳防护等级 | IK10, IP66 |
| 尺寸 | 207 × 300 mm (8.15 × 11.81 in) with sunshield |
| 快门WDR | 130 dB |
| 扫描模式 | Progressive |
| 检测位置移动 | Yes |
| 电子稳定模块 | Yes |
| 电源连接 | RJ45, AC |
| 白天/夜间模式 | Yes |
| 自动电子快门 [AES] | 1/1 to 1/32,000 |
| 输入电压 | PoE++ IEEE802.3bt, max 51.00 W AC 24 V, max 59.39 W, max 83.25 VA |
| 重量 | 3.8 kg (8.38 lb) |
| 隐私区域 | Yes |
| 测量与分析 | |
|---|---|
| 分析技术管理 | Web-based configuration and management, adjustable sensitivity, automatic responses, remote I/O control |
| PTZ | |
|---|---|
| 功率损耗恢复 | Yes |
| 回零功能 | Preset/Sequence/Auto Pan/Pattern |
| 序列-自动方位/模式 | 8/4/8 |
| 成比例方位与俯仰云台 | On/Off (pan and tilt speed proportional to zoom ratio) |
| 手动速度 | Pan: 0.1°–90°/s Tilt: 0.1°–55°/s |
| 方位/俯仰云台行程 | Pan: 0°–360° endless Tilt: -20°–100° |
| 水平视角 | Pan: 0°–360°, endless |
| 自动翻转 | Mechanical/Off |
| 预设值 | 256.0 |
| 预设速度 | Pan: 300°/s Tilt: 300°/s |
| 系统集成 | |
|---|---|
| LED类型 | High efficiency SMD |
| 以太网 | 10/100/1000, IEEE 802.3bt, auto-sensing 1 × RJ45 |
| 双向音频 | Audio in, terminal block, G.711/G.726/AAC/ LPCM, Audio out |
| 峰值发射波长[nm] | 850 nm |
| 支持的网络浏览器 | Firefox, Chrome, Edge, Safari |
| 网络协议 | IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP, Syslog, LDAP |
| 距离 | 照明角度 | Up to 200 m 6°/30°/90° |
| 输入 | Alarm in × 4, 5 V with 10 KΩ pull up, 100 mA @ room temperature |
| 输出 | Alarm out × 2, Terminal Block, 400 V DC/AC, 120 mA |
| 远程配置 | Via web browser or supported video management software |
| 热像仪 | |
|---|---|
| DSS | Default 1/4; options 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| 分辨率 | 1945 × 1097 (2 M) |
| 图像传感器 | 1/2.8” CMOS |
| 灵敏度 | Color: 0.1 lux, B/W: 0.002 lux |
| 调焦 | Lidar fast focus |
| 可见光相机 | |
|---|---|
| DSS | Default 1/4; options 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| 信噪比 | ±45 dB |
| 分辨率 | 1945 × 1097 (2 M) |
| 图像传感器 | 1/2.8” CMOS |
| 带宽 | Configurable between 64 Kbps and 20 Mbps |
| 机械式红外截止滤光片 | Yes |
| 灵敏度 | Color: 0.1 lux, B/W: 0.002 lux |
| 白平衡 | Auto/ATW/Manual/One Push |
| 背光补偿 | On/Off in linear mode |
| 调焦 | Lidar fast focus |
| 镜头类型 | 40x zoom lens, P-Iris, Auto-Iris, f/1.6, 4.3–170 mm |
| 降噪 | 3D/2D/Color NR |
| 视频和录制 | |
|---|---|
| SD卡记录 | microSD/microSDHC/microSDXC size up to 1 TB; file encryption |
| 分辨率范围 | 320 × 480 to 1920 × 1080 @ 30 fps |
| 最高性能 | Up to 4 individually configurable streams in H.265/H.264/MJPEG Configurable resolution/frame rate/bandwidth/LBR/ VBR/CBR in H.265/H.264 |
| 视频运动检测 | Yes |
| 速率控制 | LBR, CBR, VBR, MJPEG |
Accessories
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
FLIR DNA Software - Version 2.3.0.35
User Manual
FLIR Quasar Premium 1080p Pendant PTZ Installation & User Guide
Datasheet
FLIR Quasar Premium 1080p IR PTZ Datasheet
Selection Guide
FLIR Edge Devices Accessory Guide
Compatibility
FLIR Security Cameras & Encoders - Supported 3rd Party Platforms
