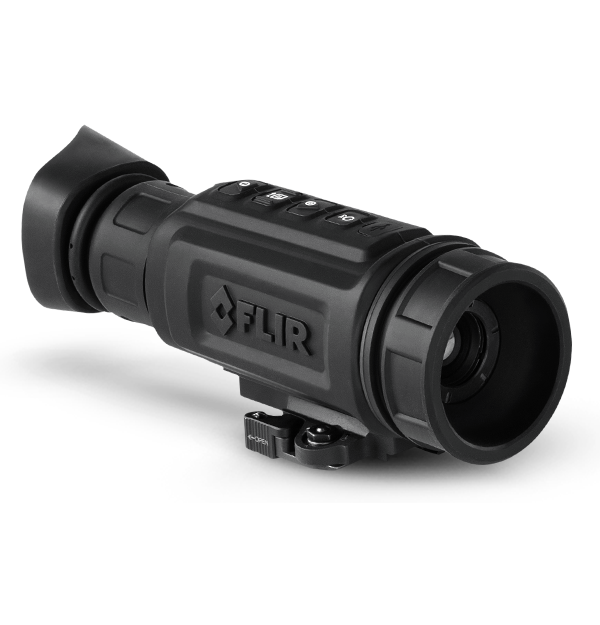

FLIR ThermoSight® RS24
Thermal Vision Rifle Scope
Built by the leader in infrared technology, the FLIR ThermoSight® RS24 contains advanced image correction technology and optimizes images automatically. With fixed 13mm lens options of 13mm, 19mm, 35mm, and 60mm, the R-Series provides three inches of eye relief, up to 16× digital zoom, and multiple reticle options with a repeatable and dependable zero. Plus, you can record memorable moments with video out on most models.
规格
| Highlighted | |
|---|---|
| 显示屏分辨率 | 640 × 480 |
| 传感器与光学 | |
|---|---|
| 十字线 | Duplex, Fine Duplex, German |
| 屈光度调节 | +/-6 |
| 帧频[Hz] | 30 Hz |
| 焦平面阵列（FPA） | 240 × 180 VOx |
| 良视距 | 3 inches (76.2 mm) |
| 调焦 | Fixed |
| 镜头水平视场角 | 20° |
| 镜头焦距 | 13mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -40° to 140° F (-40° to 60° C) |
| 工作温度 | -4° to 122° F (-20° to 50° C) |
| 防进水 | IPX7, Submersible 1m for 30 min |
| 电源 | |
|---|---|
| 电池充电 | Standard USB interface with included wall charger |
| 电池寿命 | >4 hours of use |
| 电池类型 | Internal Li-ion |
| 文件存储和通讯 | |
|---|---|
| 视频输出 | No |
| UI-UX | |
|---|---|
| 十字线颜色 | White, Black, Red, Green |
| 屏幕显示 | Battery charge, E-Zoom state |
| 显示屏 | Active Matrix LCD |
| 显示屏分辨率 | 640 × 480 |
| 用户界面 | Simple four button interface |
| 系统概览 | |
|---|---|
| 保修 | 2 Years Standard, 3 Years (with registration), 10 Years (thermal sensor only) |
| 尺寸（长×宽×高） | 8" × 3.3" × 2.9" |
| 武器兼容性 | MSR semi-automatic up to .308 Cal. |
| 武器接口 | MIL-STD-1913 Picatinny Rail |
| 电子变焦 | N/A |
| 调色板 | Black/White/InstAlert™ |
| 物理 | |
|---|---|
| 重量 | <1.8lb |
| 配件 | |
|---|---|
| 外置电池组 | Compatible, not included |
资源和支持
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
