Discontinued

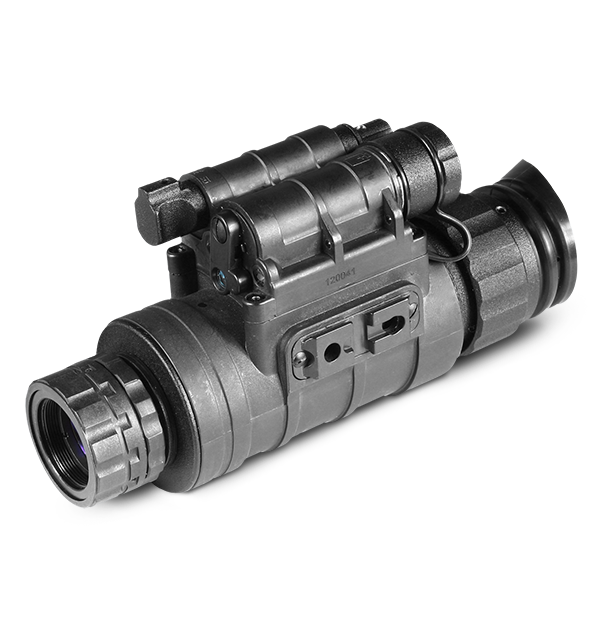

FLIR Sirius
Night Vision Monocular
The FLIR Sirius night vision monocular offers excellent Gen2+ performance and numerous high-tech features. With manual gain control, built-in IR illuminator, and bright-light shutoff, the Sirius serves the needs of both recreational hunters and law enforcement professionals. Flexible mounting options and external accessories increase device capability while a tough composite housing stands up to wear and tear.
Affordable Full-Featured Performance
Head, helmet, and weapon mounting options improve mission capability.
Manual gain control, onboard IR illuminator, and bright light shutdown enhance vision and protect intensifier tubes.
Available magnifying lenses and extra long-range IR illuminator enhance image clarity over long distances.
规格
| Highlighted | |
|---|---|
| 工作温度 | -40°C to +50°C (-40°F to +122°F) |
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | Multi-Alkali |
| 出射光瞳直径[mm] | 10 mm |
| 分辨率 | 45-51 lp/mm |
| 屈光度调节 | ±5 diopter |
| 放大率 | 1x standard (3x, 5x optional) |
| 第IIT代像管等级 | Gen 2+ SD (Standard Definition) MG |
| 红外发光器 | Yes (built-in with pivotal flood lens) |
| 自动亮度控制 | Yes |
| 良视距[mm] | 21.5 mm |
| 视场角 | 40° |
| 调焦范围 | 0.25 m to Infinity |
| 镜头系统 | F/1.2; 24 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +70°C (-58°F to +158°F) |
| 工作温度 | -40°C to +50°C (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (In FOV) |
| 电池寿命 | Up to 60 hours |
| 电源 | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| 自动关机 | Yes |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | - |
| UI-UX | |
|---|---|
| 十字线颜色 | - |
| 手动增益控制 | Yes |
| 红外指示器 | Yes (In FOV) |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | - |
| 轨道之上观测装置轴线的高度 | - |
| 风阻_仰角调节 | - |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 0.46 kg (1.0 lbs) |
| 尺寸（长 x 宽 x 高） | 182× 56 × 79 mm (7.2 × 2.2 × 3.1 in) |
| 配件 | |
|---|---|
| 可选附件 | Swing Arm #172, AIM PRO - Advanced Integrated Mount Pro, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 7x Lens # 17, Helmet Mount #183 (Shroud), Tactical Goggle Kit - Wilcox L4 G24 and 3 Hole Shroud Crye Precision Nightcap and Swing Arm #172, 5x Afocal Lens with Adapter #23, 3x Afocal Lens Kit: Lens #22 with Adapter #23, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, AIM Pro-L - Advanced Integrated Mount Pro, Mil-Standard Hard Shipping/Storage Case #101, Swing Arm #37, Goggle Kit #2, QRM - Quick Release Picatinny Mount Adapter #26/#142, Universal Camera Adapter #45, Extended Rail Adapter #85, Helmet Mount #4 |
| 随附配件 | Instruction Manual with Warranty Card, Soft carrying Case, Packing Box, Battery, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue |
