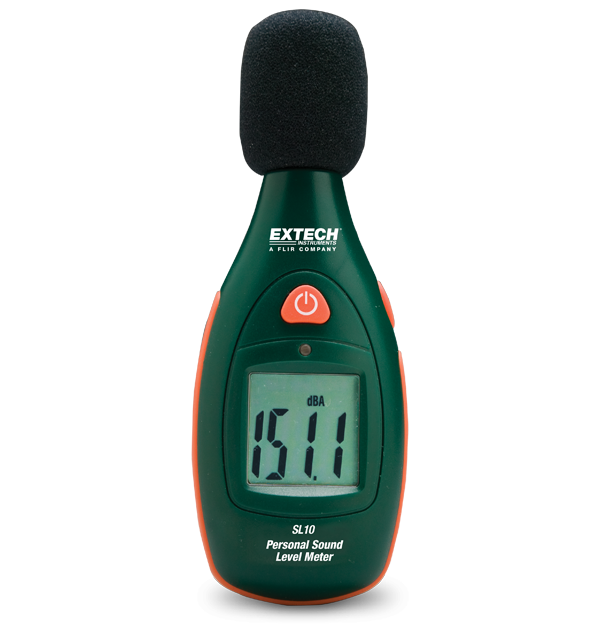

Extech SL10
Pocket Series Sound Meter
The Extech SL10 Pocket Series Sound Meter is easy to use and easy to stow. Keep one handy for whenever you need to take a quick sound level measurement. It measures sound level from 40 dB to 130 dB with a frequency weighting for human hearing and fast response time of 125 ms. Complete with 9 V battery.
规格
| 一般参数 | |
|---|---|
| 加权 | A |
| 响应时间 | 125 milliseconds |
| 声音范围 (dB) | 40 to 130dB |
| 声音范围 (dB) 基本精度 | ±3.5dB (under 94dB reference conditions) |
| 声音范围 (dB) 最大分辨率 | 0.1dB |
| 频带宽度 | 31.5Hz to 8KHz |
| 麦克风 | Condenser, 0.5" |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 8.3 × 2.2 × 1.3" (210 × 55 × 32mm) |
| 显示屏 | 4-digit (4000 count) backlit LCD |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 4.8oz (135g) |
资源和支持
User Manual
Extech SL10 User Manual
Certification
Extech SL10 Declaration of Conformity
Datasheet
Extech AN10 LT10 RH10 SL10 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
