Discontinued

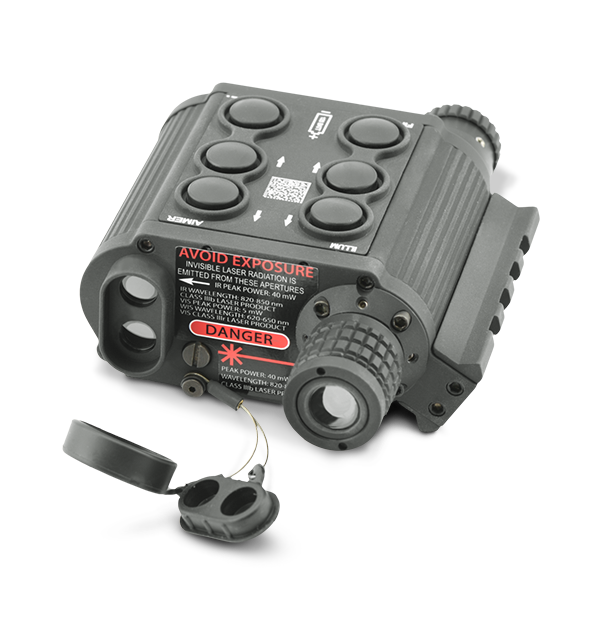

FLIR T-MAIM
Multispectral Aiming/Illumination Module
The FLIR T-MAIM is a multi-laser aiming system equipped with collimated visible and near-IR lasers. Built-in IR illuminator and near-IR aiming laser provide covert tactical precision when paired with night vision devices while manually-controlled pulse mode prevents confusion among multiple users. 256 discrete power intervals allow user-customization and included safety-mode tactical remote ensures appropriate laser intensity during training exercises.
Undeniably Powerful, Completely Customizable
Co-boresighted rapid target acquisition lasers ensure consistency when switching between visible-light and night vision.
Safety remote temporarily inhibits laser power during training while pulse mode allows multiple users to reliably identify their sight in crowded environments.
Built-In IR illuminator, flashlight mount, and rugged waterproof housing work with other equipment to provide the best tactical awareness in grueling conditions.
规格
| 传感器与光学 | |
|---|---|
| 散度（红外发光） | 1-108 mRad |
| 散度（红外点） | <0.5 mRad |
| 散度（红点） | 0.8 mRad |
| 波长（红外发光） | 820-850 nm |
| 波长（红外点） | 820-850 nm |
| 波长（红点） | 620-650 nm |
| 测量距离（红外发光） | >100 (low) / 2000 m (high) |
| 测量距离（红外点） | >200 m (low) / 2000 m (high) |
| 测量距离（红点） | >25 m (in direct sunlight) |
| 环境与认证 | |
|---|---|
| 浸入式 | Waterproof 20 meters for one hour |
| 电源 | |
|---|---|
| 尺寸、输出功率（红外发光） | 500 µW (low) / 25 mW (high) 40 mW (Peak) |
| 尺寸、输出功率（红外点） | 100 µW (low) / 25 mW (high) 40mW (Peak) |
| 尺寸、输出功率（红点） | 4 mW (visible) / 5 mW (Peak) |
| 电池寿命 | >10 hours in near-IR Aim Mode |
| 电源 | One CR123A 3.0V DC Lithium Battery |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 武器基座类型 | MIL-STD-1913 |
| 物理 | |
|---|---|
| 产品重量 | 0.29 kg (0.63 lbs) |
| 尺寸（长 x 宽 x 高） | 105 × 81 × 43 mm (4.2 × 3.2 × 1.7 in) |
| 配件 | |
|---|---|
| 可选配件 | - |
| 随附配件 | Packing Box, Soft Carrying Case, One Lithium Battery CR123ALens Tissue, Instruction Manual with Warranty Card, Remote Switch Assembly, SAFETY INTERLOCK (Class 1) - BLUE, Remote Switch Assembly, Tactical Full Access - BLACK |
