Axx IP69k Housing (T912302)
适用于 Flir A40/A50/A70 型号的冲洗/食品级保护外壳

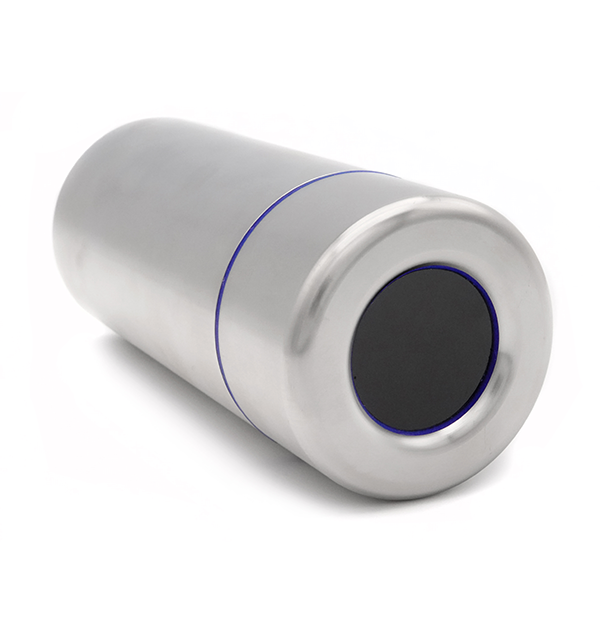

This stainless steel, IP69k-rated protective housing is specifically designed for Flir A40/A50/A70 (Axx) thermal cameras. The housing is designed in accordance with EHEDG standards. The enclosure is made of A316L electropolished to Ra <0.8 µm. Camera accuracy within the protective housing remains within standard specifications due to Flir's proprietary radiometric formulas.
Note: the germanium window blocks the visual camera. The germanium employed is a crystalline material and not certified for use in proximity to food stuff. For use in food processes it is recommended to perform an application specific risk analysis according to local regulations and guidelines.
专为最需要热成像技术的环境而设计
同一款 Axx 或 Axxx 系列热像仪可放心部署在通常被认为过于恶劣而不予考虑的各种环境中。
餐饮
不锈钢外壳可耐受高压、高温冲洗，并配有符合 EHEDG 标准的卫生安装支架，以便完成整套安装。
IP69K · EHEDG 设计 · FDA 认证密封件 · 316L
金属与重工业
IP67 外壳搭配叠层散热结构，保障热像仪能够持续在熔炉、窑炉和高温工艺附近工作。
状态监控
密封防护结构外加遮阳罩，使固定式户外监测点位在任何季节均可使用。
早期火灾探测
适用于粉尘较多的废料场、回收场站与仓储区域，可持续探测火情，无需担心热像仪受损。
保护热像仪就是保障项目——包括正常运行时间、数据连续性和项目采购预算。
规格
| 成像与光学 | |
|---|---|
| 兼容相机 | FLIR A50/A70 |
| 颜色 | 银色 |
| 环境与认证 | |
|---|---|
| 安装 | 1 边，3× m6，孔间距 25 mm，深度 5 mm |
| 封装 | IP69K |
| 常规 | |
|---|---|
| 尺寸[长×深] | 188.6 × 80.0 mm |
| 材料 | 不锈钢 A316L |
| 重量 | 3.45 kg |
附件
资源和支持
Datasheet
FLIR Axx IP67/IP69k 外壳数据表
