Dust, Washdown, & Corrosive Atmospheres
Protect cameras from process residue, moisture, high-pressure washdown, and harsh industrial environments with IP67 and IP69K certified protection.
Protection That Never Clocks Out
IP67 and IP69K environmental housings for Flir Axx and Axxx fixed thermal cameras — engineered, validated, and stocked by Teledyne Flir.
A40 · A50 · A70 | A400 · A500 · A700
PROTECTIVE HOUSINGS
Flir Environmental Housings for Axx/Axxx Fixed Thermal Cameras
Continuous monitoring only pays off when it is continuous. The environments that need thermal most are the ones that punish electronics hardest.
Extreme Heat
Extend camera operation in demanding environments with modular cooling solutions supporting ambient temperatures up to 90°C (194°F).
Outdoor Exposure
Sunshields, rugged housings, and robust mounting accessories help protect imaging performance in outdoor installations year after year.
The Lineup
One family. Every A-Series deployment covered.
Two camera platforms, three protection grades, and an optional visual window—sold separately from the camera and simple to retrofit.
适用于 Axx 系列的 IP67 外壳 (T912301)
适用于 Axx 系列的 IP67 外壳 (T912493)
适用于 Axxx 系列的 IP67 外壳 (T912366)
适用于 Axxx 系列的 IP67 外壳，带有热成像和可见光观察窗 (T912659)
Axx IP69k Housing (T912302)
Camera Compatibility
Which housing for which camera
A quick reference for matching the right environmental housing to your Flir A-Series camera, lens, and operating environment.
| Housing | A-Series Cameras | Lens FOV | Window | Ingress | Housing Material | Food-grade |
| T912301 | A40 · A50 · A70 | 29° · 51° · 95° | Thermal | IP67 | Aluminum | — |
| T912302 | A40 · A50 · A70 | 29° · 51° · 95° | Thermal | IP69K | Stainless steel 316L | Yes — EHEDG design |
| T912493 | A40 · A50 · A70 | 29° · 51° (not 95°) | Thermal + Visual | IP67 | Aluminum | — |
| T912366 | A400 · A500 · A700 | 14° · 24° · 42° | Thermal | IP67 | Aluminum | — |

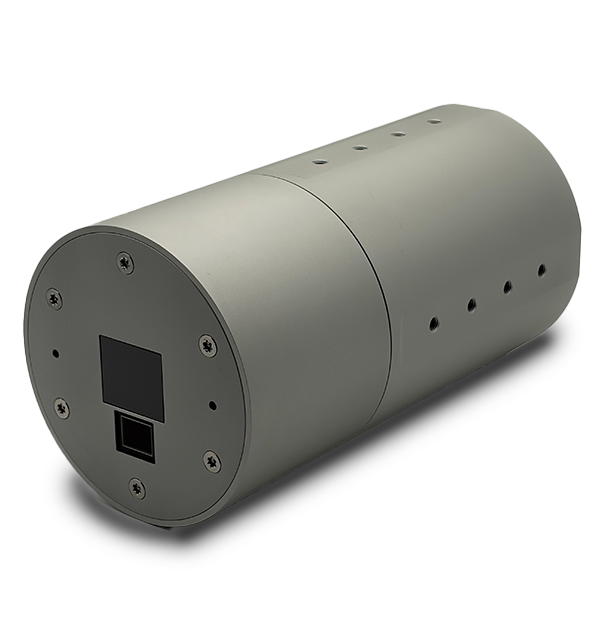

| T912659 | A400 · A500 · A700 | 14° · 24° · 42° | Thermal + Visual | IP67 | Aluminum | — |
| 1 - Camera | 2 - Environment | 3 - Window |
| Axx: A40 · A50 · A70 Axxx: A400 · A500 · A700 |
Washdown / hygiene: IP69K stainless General industrial: IP67 aluminum |
Thermal: all four families Thermal + Visual: Axx & Axxx IP67 |
Ingress protection ratings are third-party certified. Thermal housings accept every lens in their camera family. The Axx Thermal + Visual housing (T912493) supports the 29° and 51° lenses, not 95°.
For configuration and delivery, contact your Teledyne Flir representative or authorized partner.
HOW TO CHOOSE YOUR HOUSING
The A-Series Configuration Selector helps users quickly identify the ideal FLIR A-Series thermal camera configuration for their application. Compare models, features, optics, and accessory options in one place to streamline product selection and ensure the right solution for automation, condition monitoring, quality assurance, and thermal imaging needs. It simplifies the configuration process, helping users make informed decisions faster and with greater confidence.
Customize Yours
资源和支持
Datasheet
FLIR Axx IP67/IP69k 外壳数据表
