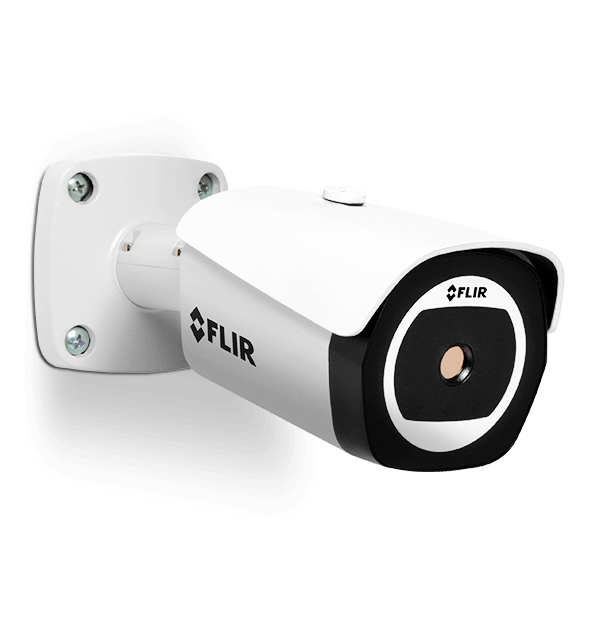

FLIR TCX Thermal Mini-Bullet
Thermal Mini-Bullet
The TCX Thermal Mini-Bullet security camera offers affordable, high-contrast thermal video with built-in video motion detection (VMD) and alarm verification. The TCX Mini Bullet enables a whole new range of applications for thermal imaging in one affordable device, such as supporting retail traffic flow and queue management in business settings and providing reliable surveillance in low light conditions.
规格
| 合规性与认证 | |
|---|---|
| 合规性 | FCC, CE |
| 符合ONVIF规范 | Profile S |
| 环境 | |
|---|---|
| 工作温度范围 | -40°C to 50°C |
| 环境参数 | IP66 |
| 防冻 | Anti-Ice |
| 高性能浪涌保护 | Yes |
| 常规 | |
|---|---|
| AGC侦测区域 | Yes |
| 事件通知 | Email (SMTP) , Recording, Snapshot |
| 热视场角 | 25° |
| 电源输入 | PoE Class 3, 12VDC |
| 测量与分析 | |
|---|---|
| 人员检测范围： | 20m for 50°, 40m for 25° (typical) |
| PTZ | |
|---|---|
| 方位角/速度 俯仰角/速度 | — |
| 系统集成 | |
|---|---|
| 报警事件调度器 | Yes |
| 热像仪 | |
|---|---|
| 内置视频运动检测 | Yes, 4 independent VMD masks |
| 分辨率 | 80 x 45 |
| 图像传感器 | Uncooled Sun-safe VOx Microbolometer |
| 宽动态范围（热成像） | — |
| 隐私掩码 | Yes |
| 视频和录制 | |
|---|---|
| IP视频 | H.264 and MJPEG |
| 视频叠加选项 | Time, Picture, Channel Name, Custom |
