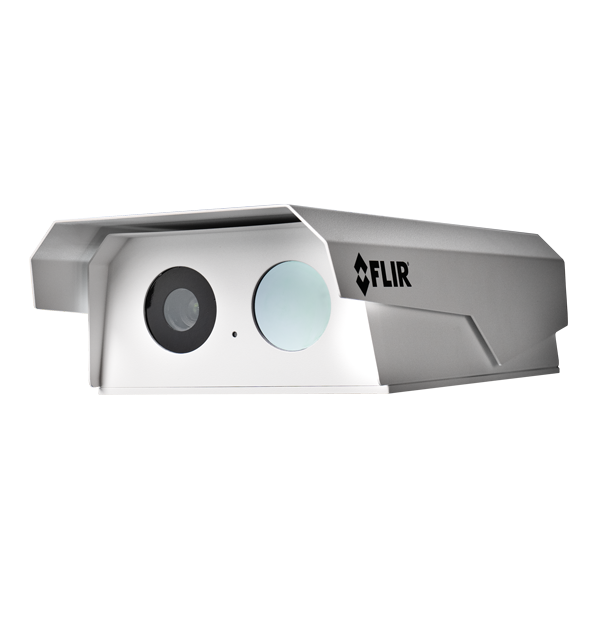

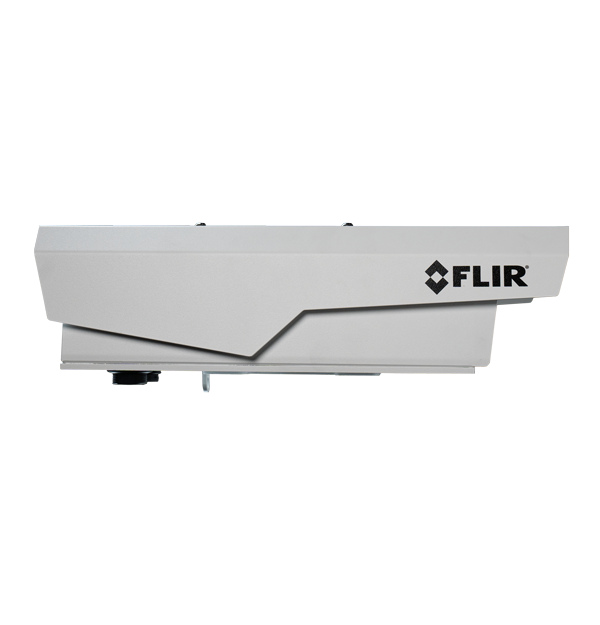

FLIR TrafiBot Dual AI™

搭载嵌入式 AI 深度学习的自动事件、数据收集和火灾检测相机

FLIR TrafiBot Dual AI™ 采用嵌入式 AI 和强大的 FLIR AID 算法,支持智能交通管理,提高道路安全性,使自动事故检测、交通数据收集和火灾早期检测比以往更加可靠。该多光谱闭路电视交通解决方案的性能优于非 AI 交通相机,因为它能够对事件进行分类和评估。

TrafiBot Dual AI™ 利用其 3D 世界追踪器提高了现场检测事故的能力,即使目标被其他车流遮挡,也能预测速度和轨迹。FLIR TrafiBot Dual AI ™内置倾斜传感器,可缩短隧道内的安装时间,采用耐腐蚀的海事级不锈钢外壳,并具有增强的 4K 分辨率,是城际环境中增强道路管理的高级解决方案。

从隧道、公路和桥梁中检测事故并采集交通数据
TrafiBot Dual AI 用三种嵌入式 AI 模型对车辆、物体和弱势道路使用者进行分类和识别;此外,它还采用 FLIR 的 3D 世界追踪技术来追踪其视场中每个物体的移动。
组合支架适合所有表面,带三轴旋转接头,可平移、倾斜和滚转,无需定制的转接板,因此可快速安装 TrafiBot Dual AI。
TrafiBot Dual AI 可与 FLIR Cascade 无缝连接,可发送带事件发生前与事件发生后时间的警报和现场的高清视频短片,以便立即进行分析。

AI on Board

TrafiBot Dual AI outperforms non AI-based traffic cameras due to its ability to learn and refine how it evaluates events. In fact, the camera uses three embedded AI models, one for classifying fallen objects and the other two for identifying vehicles on video and in thermal, including unusual objects such as e-scooters, car hauling trucks and vulnerable road users like pedestrians and bicyclists.

The camera uses powerful FLIR AID algorithms, as well, which allows for a greater capacity to detect incidents a scene. And because its analytics are built in, TrafiBot Dual AI isn't vulnerable to potential bottlenecks or interruptions associated with centralized AID systems.

3D Tracking to Track Every Object

Using its patented 3D world tracker, TrafiBot Dual AI increases its capacity to detect incidents within a scene. As vehicles enter its field of view, the camera will anticipate their speed and trajectory, even if they become obscured by other traffic.

TrafiBot Dual AI can detect sudden lane changes, tailgating, or wrong-way drivers without direct line of sight. It can also tell the difference between vehicles stopped due to rush hour traffic and those that have stalled or stopped due to a collision.

Easy Installation Limits Road Closures

TrafiBot Dual AI's built-in tilt sensor reduces installment time and traffic delays, especially in tunnels with sloping walls. The camera has a three-axis swivel that pans, tilts, and rolls sideways, eliminating the need for custom adapter plates. The tilt sensor also calibrates automatically, eliminating the possibly for human error.

With its highly sensitive, high-resolution, fast thermal core, TrafiBot Dual AI guarantees unparalleled fire detection, speed, accuracy, and reliability at the earliest stages. And with 640 × 512 thermal resolution, operators can see clearly - even in poor weather conditions or a smoke-filled tunnel.

Integrates with FLIR Cascade

TrafiBot Dual AI integrates seamlessly with FLIR Cascade, our robust software platform specifically designed to collect and organize data from FLIR traffic cameras. You can connect up to 300 FLIR cameras or sensors to a standalone Cascade server.

In the case of a traffic incident, the TrafiBot Dual AI will send an alert with a pre and post incident time and short, high resolution video clips of the scene for immediate analysis. Traffic operators can then use their existing VMS to access live footage from the camera itself.

Stainless Steel Housing

Trafibot Dual AI is housed within an IP 66/67-rated non-corrosive, marine grade, stainless-steel casing built to withstand all types of weather, including salt air and humidity, along with high-pressure water blasts from road-and-tunnel cleaning operations.

规格

通讯
RJ45 接口 10/100/1000 Mbps
接口 10/100/1000 Mbps
支持的协议 IPv4、TCP/IP、UDP、RTP、RTSP、HTTP、HTTPS、ICMP、SMTP、DHCP、IGMP、SNMP、QoS、ONVIF、TLS1.2、IEEE802.1x
最大流量 2
编码格式 AVC/H.264、HEVC/H.265、MJPEG
输出 2 (NO/NC)
电气
MTBF_MTTR >10 年/30'
功耗 12 W 加热器关闭(正常运行)
17 W 加热器打开
输入电压 24 V 交流/直流
PoE+ 802.3at
环境
IP防护等级 IP66/IP67
外壳材料 316 L 不锈钢,耐腐蚀,适用于恶劣环境
工作温度范围 持续:-40°C 至 60°C(在遮挡情况下,空气温度)
湿度 0%至100%,无冷凝
成像与光学
光学变焦 电动,4K
分辨率 视频:4K 3840 × 2160
图像传感器 1/1.8 英寸 CMOS
快门WDR 120 dB
探测器类型 焦平面阵列(FPA),非制冷型氧化钒微测辐射热计
有效像素 3840× 2160,800 万像素 (4K)
水平视场角 [HFOV] 53°(W) 至 26°(N)
波长范围 7.5 - 13.5 µm
热分辨率 640 × 512(快速)
焦距 6 mm 至 >22 mm
视场角 HFOV:26° 至 53°
VFOV:15° 至 31°
机械
安装 天花板、弯曲墙壁和墙壁/立杆安装选项
尺寸 相机:30.1 × 19.2 × 9.4 cm,不包括遮阳罩
支架:32 × 17. 5 × 24 cm
遮阳罩 316L C5 海事级,粉末涂装 RAL9016
重量 相机:5.7 千克,支架:3 千克
系统概览
尺寸(包括遮阳罩) 相机:36.6 × 20.2 × 10.4 cm,包括遮阳罩
数据接口 10/100/1000 Mbps
