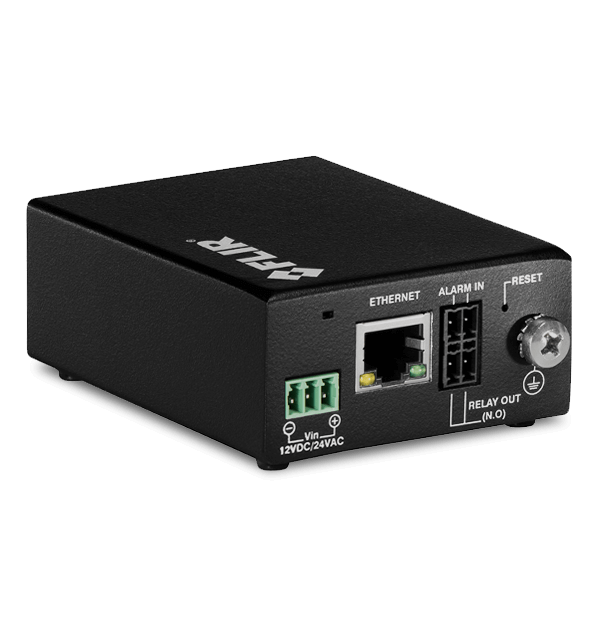

TRK-101
Analytics Encoder
The TRK-101 analyzes video signals and sends alarm notifications when people, vehicles and objects cross perimeter lines, enter pre-defined regions, or are left behind or removed from a scene. Users can define perimeters and customize what to detect. The TRK-101 has both analog and IP streaming video outputs that enable hybrid connectivity to both legacy and IP-based CCTV networks. The encoder also integrates with existing fixed analog cameras for retrofit of existing installations.
规格
| 合规性与认证 | |
|---|---|
| 安全性 | UL, CE |
| 环境 | |
|---|---|
| 工作温度 | 0° to 60°C (32° to 140°F) |
| 工作湿度 | 5% to 95% (non-condensing) |
| 环境参数 | RoHS |
| 电磁干扰 | (EMC) FCC 47 CFR Part 15, Subpart B, Class A; CE Class A |
| 常规 | |
|---|---|
| H.264帧频（PAL/NTSC） | D1 12/15 FPS VGA 18 FPS 2CIF 25/30 FPS CIF 25/30 FPS |
| 功耗 | DC: 3.6W, AC: 6W |
| 存储在边缘 | 3,800Mb event recording |
| 安装 | Shelf/optional rack-mounting (single-unit or multiple-unit accessory) |
| 尺寸（mm） | 68.5 x 36 x 118mm (W x H x D) |
| 尺寸（英寸） | 2.7 x 1.42 x 4.61" (W x H x D) |
| 操作系统 | Windows 7, 8 and 8.1, 10 |
| 智能视频分析信道数目 | 1 |
| 电压 | 12VDC (+/-10%), 24VAC |
| 系统集成 | |
|---|---|
| TV标准 | Composite 1Vp-p – NTSC or PAL |
| 以太网（IEEE 8023-8023u） | 1 x RJ45 interface |
| 报警/命令 | TCP/IP, HTTP |
| 服务与协议 | TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
| 浏览器 | Microsoft Edge in IE mode (Microsoft will support IE mode in Edge at least until 2029) |
| 物理连接器 | 1x BNC 75Ω |
| 输入-报警输入 | 1x dry contact |
| 输出/继电器输出 | 1x relay output (rated load 0.3A@12VDC; 1A@30VDC; 0.25A@24VAC, 50/60Hz) |
| 视频和录制 | |
|---|---|
| IP视频流 | H.264, MPEG-4 SP, MJPEG |
| 比特率 | CBR (128Kbps – 4Mbps), VBR |
| 视频流 | RTP/RTSP |
