Discontinued

USS Edge

Compact Server with built-in POE

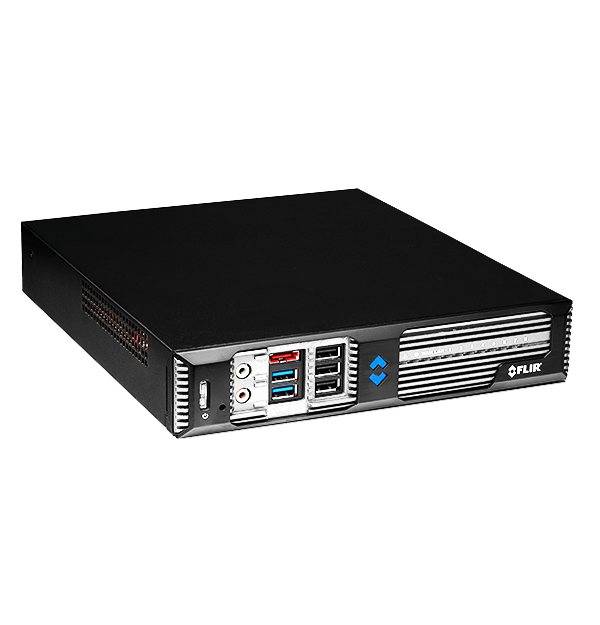

FLIR’s USS Edge server is a compact appliance ready for any application. Equipped with a built-in 8 port PoE switch, it’s an ideal video security solution for mobile deployments, including mass transportation, mobile command centers, and marine applications. Pre-loaded with Latitude VMS (Video Management System), the compact, enterprise-grade design can be used as an independent VMS or to extend security systems across multiple locations.

The compact USS Edge server lets you extend a video security system to multiple locations and offers eight PoE ports for system expansion.
Reduced installation time, small form factor, and reduced power consumption allow the USS Edge to operate efficiently.
Protected by a three-year warranty, the USS Edge’s simple interface allows technicians to quickly solve problems and perform routine maintenance.

规格

合规性与认证
认证 UL (US and Canada), CE, FCC, LVD and RCM
环境
工作温度 0°C to 40°C (32°F to 104°F)
常规
PoE 8 x 10/100 RJ-45 ports
PoE总功率输出[包括所有信道] 70W
保修 3 Years
内存 8GB
功耗 80 W min.; 150 W max.
处理器 Intel® Core™ i3-4330 Processor (4M Cache, 3.50 GHz)
尺寸 H x W x D : 44 x 220 x 245mm (1.73" x 8.66" x 9.65")
形状因数 Small and compact Form Factor with 8-port POE switch
操作系统 Microsoft Windows 10 Enterprise LTSB 64 bit
最多支持的热像仪数目 16
电源 150W; 100 to 240 VAC, 50/60 Hz, Single non-redundant power supply
监视 Up to 210 FPS 1080p
视频存储硬盘驱动器 4TB HDD SATA
重量 3 kg (6.4 lb)
系统集成
USB端口 3 x USB 2.0; 2 x USB 3.0; 1 x eSATA
串行 RS-485
报警IO 4 x alarm-in; 2 x alarm-out
联网 Dual NIC 2 x 10/100/1000 Mbps RJ-45
音频 Via HDMI or 3.5mm audio jack 1 x Mic-in / 1 x Headphone-out
视频和录制
录制容量 70 Mbps
硬盘驱动器 120GB SSD (70 GB for OS + SW, 50 GB for DB)

资源和支持

Datasheet

USS-Edge-Server-Datasheet

下载

Tech Note

FLIR USS Edge Cyber Hardening Security Bulletin

下载

Application Story

City Deploys Flir Video System for Safety

下载

Brochure

Universal System Solutions Advantage Brochure

下载

User Manual

FLIR Cyber Hardening Guide

下载

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
