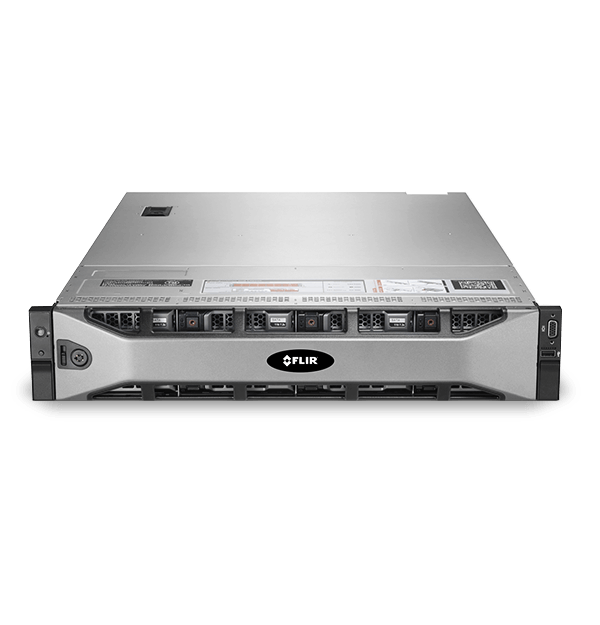

USS Enterprise-Class
Enterprise-Class Server
The FLIR Universal Systems Solutions Enterprise is an ideal multi-purpose rack server with up to 96TB of storage, redundancy, and value in a compact chassis that addresses the requirements of IT environments. The unit is loaded with system management capabilities, best-in-class processing, and the ability expand storage in the future.
规格
| 合规性与认证 | |
|---|---|
| 认证 | Nemko, CE, FCC, C-Tick, ICES, VCCI, CCC |
| 常规 | |
|---|---|
| RAID控制器 | Hardware RAID controller with Flash Backed Cache |
| 保修 | 3-year ProSupport and Next Business Day On-site Service (upgrades available) |
| 内存 | 16 GB RDIMM RAM (2X8GB) |
| 处理器 | Enterprise Six-core Intel® Xeon® processor E5-2600 product family |
| 尺寸 | 87.3 x 440 x 684 (mm) |
| 形状因数 | 2U rack |
| 操作系统 | Microsoft Windows Server 2012 R2 Embedded) |
| 支架 | ReadyRails™ II sliding rails |
| 电源 | Dual, Hot-plug, Redundant Power Supply, 495W, 100~240VAC 50/60Hz (auto) |
| 系统管理 | iDRAC8 Express (Enterprise License Upgrade Option) |
| 芯片组 | Intel C610 |
| 重量 | Max: 36.5 Kg (80.47 lb) |
| 系统集成 | |
|---|---|
| USB外围设备 | 2 - USB 3.0 compliant |
| 处理器插槽 | 2 |
| 输入/输出插槽 | 6 PCIe slots |
| 通信 | Embedded Quad Port 1Gb NIC |
| 视频和录制 | |
|---|---|
| 硬盘驱动器存储 | Enterprise class, Hot-swap HDDS Max Internal Storage: 96TB |
| 硬盘驱动器插槽 | 16+2 hard drive chassis |
