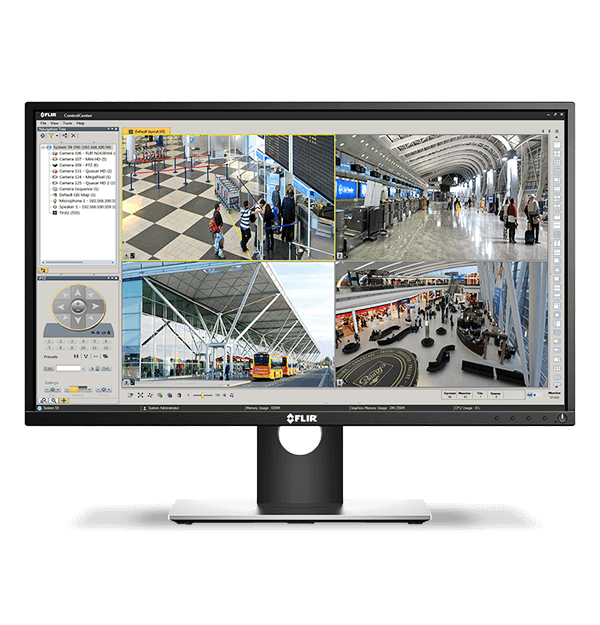

USS Full HD Monitor
24 Inch Full HD Monitor
Designed for Latitude, Horizon and Meridian clients, the USS monitor delivers brilliant display quality at Full HD resolution, making it an ideal choice for a complete FLIR solution.
规格
| 网络安全 | |
|---|---|
| 安全性 | Security lock slot |
| 常规 | |
|---|---|
| VESA安装支架 | Quick Release feature (100 mm x 100 mm) |
| 亮度 | 250 cd/m² |
| 保修 | 3 Years |
| 动态对比率 | 4 million:1 |
| 可视图像尺寸 | Diagonal: 60.45 cm (23.8 inches) |
| 响应时间 | 6 ms (gray to gray) |
| 对比率 | 1000:1 |
| 支架 | Height adjustable stand, tilt, swivel, pivot and built-in cable management |
| 有效显示面积 | Horizontal: 527.04 mm (20.75 inches) Vertical: 296.46 mm (11.67 inches) |
| 背光 | LED |
| 色域 | 0.82 |
| 色深 | 16.7 million colors |
| 视角 | Vertical/Horizontal 178°/178° |
| 面板技术 | In-plane switching, anti-glare with 3H hardness |
| 高宽比 | 16:9 |
| 测量与分析 | |
|---|---|
| 最高分辨率 | Full HD Resolution maximizes detail captured by the cameras |
| 系统集成 | |
|---|---|
| 交流输入 | 100 to 240 VAC, 50 or 60 Hz ± 3Hz, 1.5 A |
| 连接器 | VGA | HDMI (1.4) | DP (1.2) | 3 USB 3.0 (2 down, 1 up) | 2 USB 2.0 |
| 热像仪 | |
|---|---|
| 像素间距 | 0.275 mm x 0.275 mm |
| 高宽比 | 16:9 |
| 可见光相机 | |
|---|---|
| 高宽比 | 16:9 |
