Discontinued

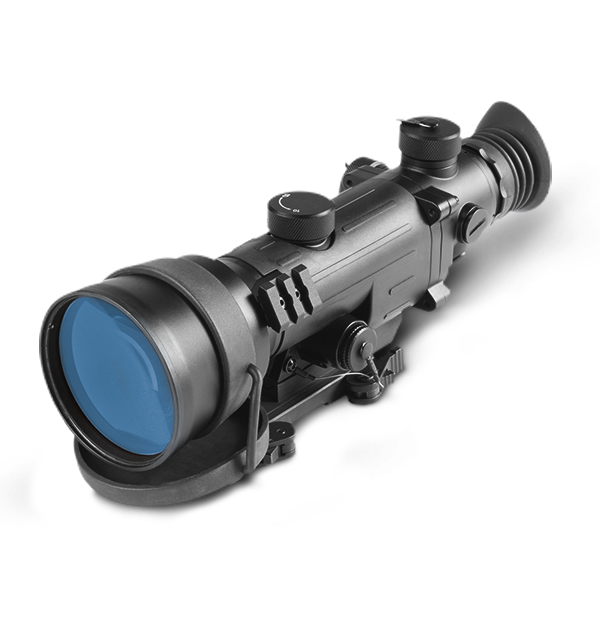

FLIR Vampire 3x
Night Vision Riflescope
The FLIR Vampire 3x is a CORE intensifier tube-based night vision riflescope designed for precise shot placement in minimal light conditions. A solid aluminum housing protects key electrical components from severe weather and shot recoil while an included extra long-range IR illuminator improves downrange image quality. An onboard tactical rail makes mounting additional lasers or illuminators simple.
Pinpointed Tactical Night Vision
Durable CORE intensifier tube and included XLR IR illuminator offer clear vision in minimal lighting.
Dust- and water-resistant solid aluminum housing withstands grueling environments and shot recoil.
Built-in tactical rail allows quick installation of detachable lasers and illuminators.
规格
| 传感器与光学 | |
|---|---|
| 亮光切断 | No |
| 光阴极类型 | N/A |
| 出射光瞳直径[mm] | - |
| 分辨率 | 60-70 lp/mm |
| 屈光度调节 | ±4 diopter |
| 放大率 | 3x |
| 第IIT代像管等级 | CORE |
| 红外发光器 | Detachable Long Range IR |
| 自动亮度控制 | No |
| 良视距[mm] | - |
| 视场角 | 10.5° |
| 调焦范围 | 10 m to Infinity |
| 镜头系统 | F/1.5; 108 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -55°C to +70°C (-67°F to+158°F) |
| 工作温度 | -51°C to +45°C (-59°F to +113°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes |
| 电池寿命 | Up to 40 hours |
| 电源 | CR123 Lithium 3V (1) or CR123 type rechargeable batteries with voltage 3.2V (1) |
| 自动关机 | No |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | No |
| UI-UX | |
|---|---|
| 十字线颜色 | Red on Green |
| 手动增益控制 | No |
| 红外指示器 | No |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | Crosshair |
| 轨道之上观测装置轴线的高度 | - |
| 风阻_仰角调节 | 1/2 MOA |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 1.36 kg (3 lbs) |
| 尺寸（长 x 宽 x 高） | 318 x 87 x 95 mm (12.5 x 3.4 x 3.7 in) |
| 配件 | |
|---|---|
| 可选附件 | XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, Mil-Standard Hard Shipping/Storage Case #101, Extended Rail Adapter #85 |
| 随附配件 | XLR-IR850 Detachable X-Long Range Infrared Illuminator, Packing Box, One Lithium Battery CR123A, Instruction Manual with Warranty Card, Soft carrying Case, Lens Tissue |
