VP54

Triple Alarm CAT IV Non-Contact Voltage Detector with Flashlight

Product view 1

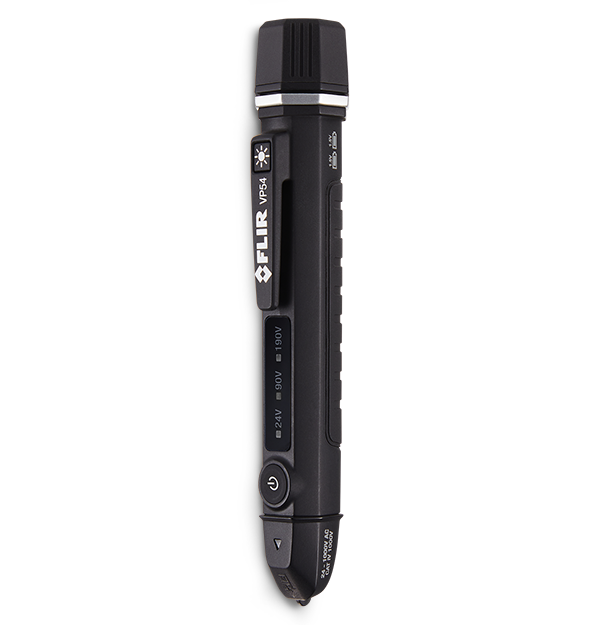

Product view 2

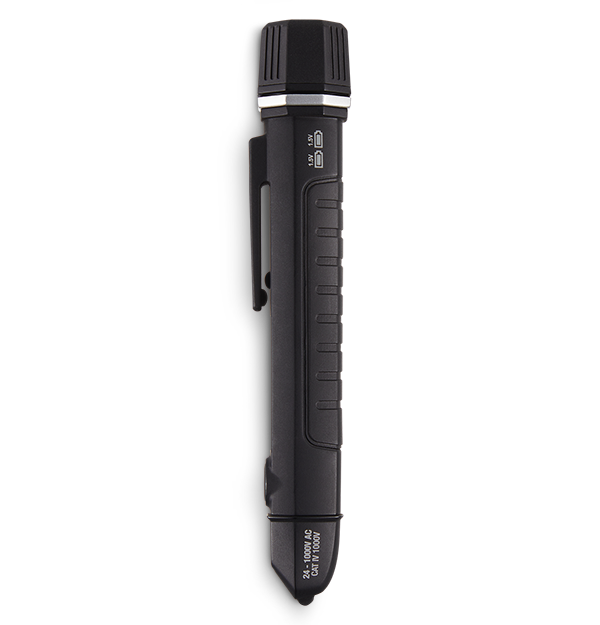

Product view 3
Product view 4

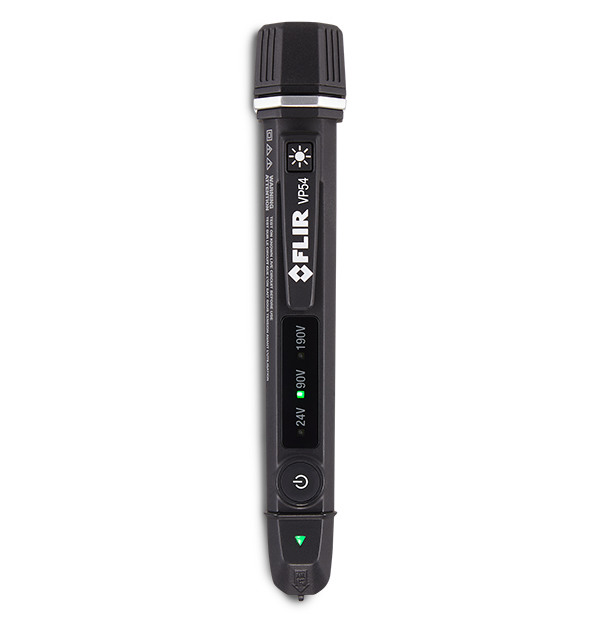

Product view 5

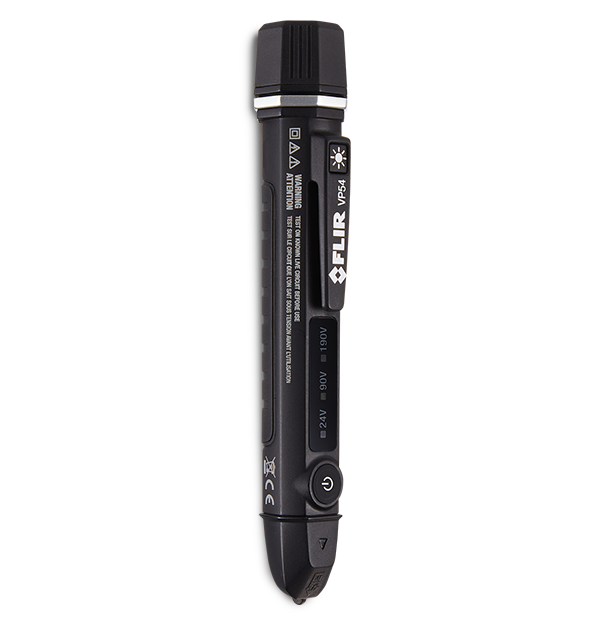

Product view 6

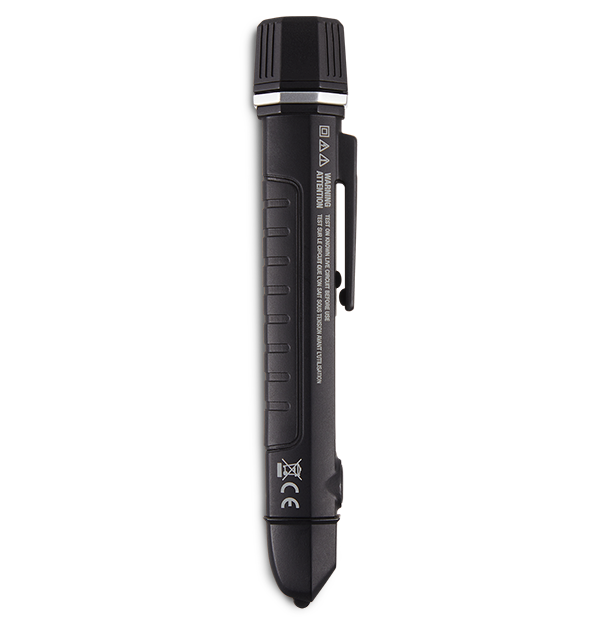

Product view 7

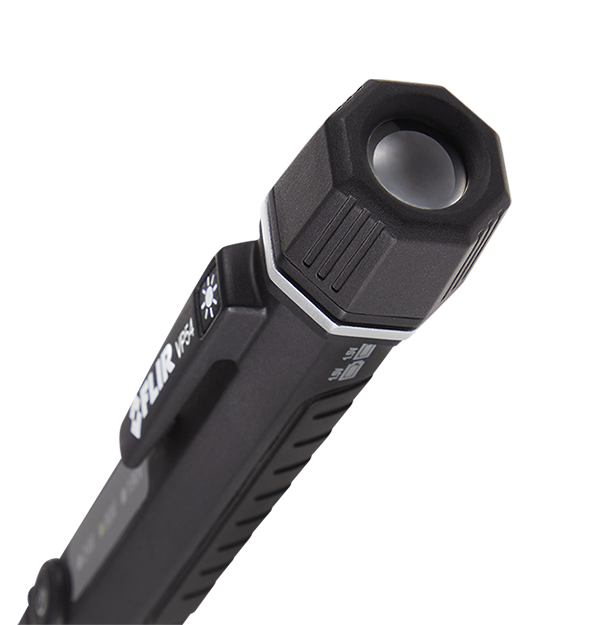

Product view 8

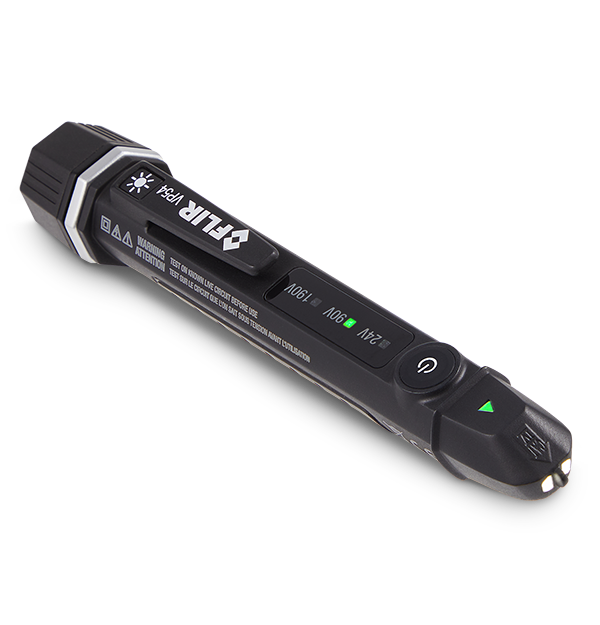

Product view 9

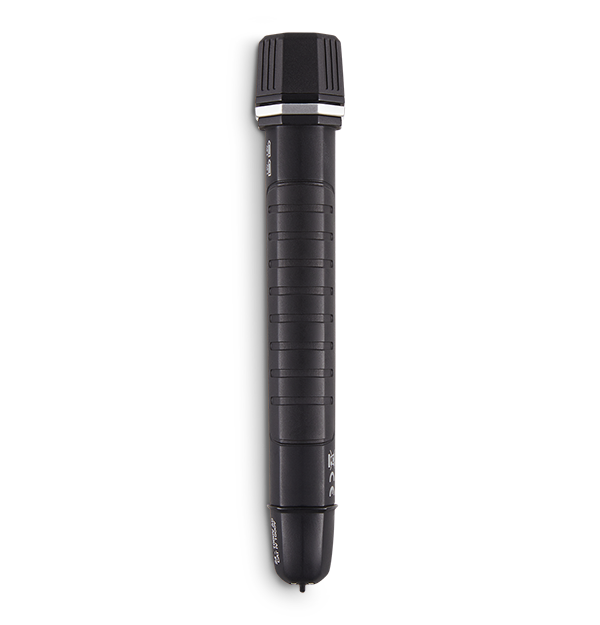

Product view 10

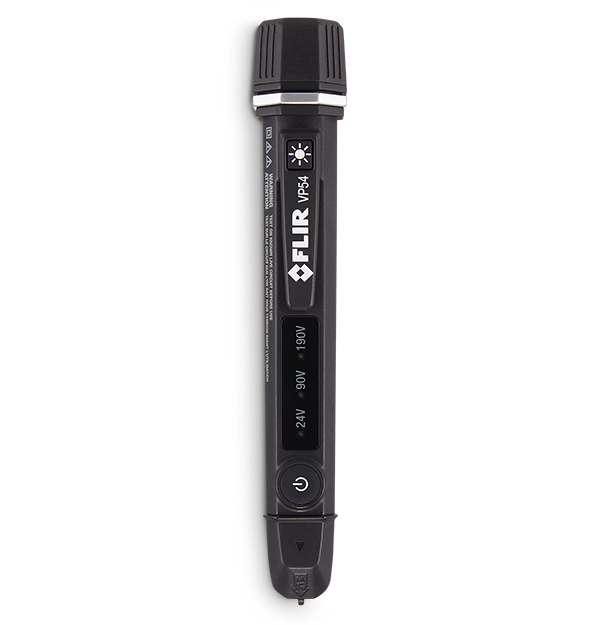

Product view 11

The Flir VP54 is a rugged, CAT IV-rated non-contact voltage detector designed for reliable, everyday electrical testing. Equipped with bright LED illumination and multiple alert types—including visual, vibration, and audible alarms—it makes identifying live voltage quick and intuitive in any environment. Use the VP54 to verify energized circuits before starting work, detect voltage through insulation, locate live wires in panels, switches, and outlets, or trace circuits with confidence. Built with an ergonomic, drop-tested design, it’s a dependable tool for professionals working across residential, commercial, and industrial applications.

Vibration, sound, and visual alarms give you clear voltage alerts—even in dark or noisy areas.

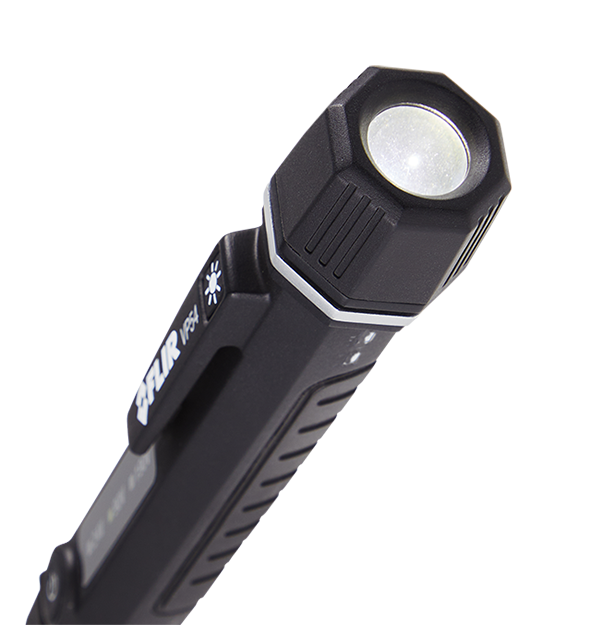

See target area clearly in poor lighting conditions
Accurately differentiate live wires from neutral or ground in outlets

规格

Highlighted
报警通知 Sound, Flashing LED, Vibration
手电筒 Yes
摄像头灯 Yes
抗跌落试验 3 m (9.8 ft)
CAT等级 CAT IV-1000 V
认证 CE, ETL
保修 Limited 3-year
测量与分析
CAT等级 CAT IV-1000 V
交流电压 24 to 1000 V AC (default, solid green light)
90 to 1000 V AC (default, solid green light)
190 to 1000 V AC (default, solid green light)
频率范围 45 to 65 Hz
高灵敏度模式 24 to 1000 V AC (default, solid green light)
环境与认证
保修 Limited 3-year
存储温度 -20°C to 60°C (-4°F to 140°F)
工作温度 -10°C to 50°C (14°F to 122°F)
抗跌落试验 3 m (9.8 ft)
认证 CE, ETL
常规
尺寸（长 x 宽 x 高） 163 × 29.2 × 26.5 mm (6.4 × 1.15 × 1 in)
手电筒 Yes
报警通知 Sound, Flashing LED, Vibration
摄像头灯 Yes
电源
电池寿命 ~5 hours continuous (flashlight off)
电源要求 2 × AAA alkaline batteries
