Discontinued

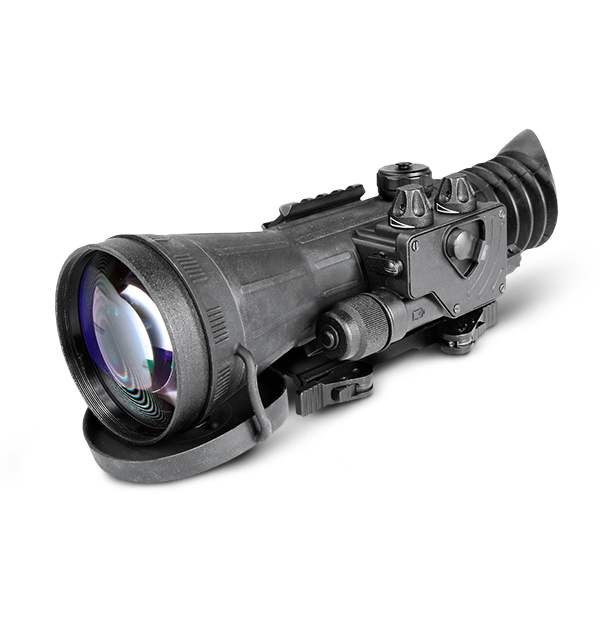

FLIR Vulcan 4.5x
Night Vision Riflescope
Available in a wide array of high-performance image intensifiers, the FLIR Vulcan 4.5x riflescope offers impeccable vision downrange in minimal light conditions. Manual focus, gain, windage, and elevation adjustments give the marksman complete control for precise, repeatable shot placement. Included detachable XLR IR illuminator mounts on a built-in tactical rail and enhances image clarity in challenging conditions.
Fine-Tuned Tactical Night Vision
User-modified image focus, gain, windage, elevation, and reticle controls allow minute adjustments for consistent shot placement.
Quick-release Picatinny/Weaver mounting, multicoated optics, and a rugged shock protected housing ensure simple operation and durability.
Included wireless remote control and extra long-range IR illuminator improve device ease-of-use and limited-light performance.
规格
| 传感器与光学 | |
|---|---|
| 亮光切断 | Yes |
| 光阴极类型 | GaAs |
| 出射光瞳直径[mm] | 7 mm |
| 分辨率 | 64-72 lp/mm |
| 屈光度调节 | ±4 diopter |
| 放大率 | 4.5x |
| 第IIT代像管等级 | Gen 3 High Performance IIT PINNACLE MG |
| 红外发光器 | Detachable Long Range IR |
| 自动亮度控制 | Yes |
| 良视距[mm] | 45 mm |
| 视场角 | 9° |
| 调焦范围 | 10 m to Infinity |
| 镜头系统 | F/1.54; 108 mm |
| 环境与认证 | |
|---|---|
| 存储温度 | -50°C to +70°С (-58°F to +158°F) |
| 工作温度 | -40°C to +50°С (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池低电量指示 | Yes (In FOV) |
| 电池寿命 | Up to 60 hours |
| 电源 | CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.2V (1) |
| 自动关机 | Yes |
| 文件存储和通讯 | |
|---|---|
| 远程控制 | Wireless |
| UI-UX | |
|---|---|
| 十字线颜色 | Red on Green |
| 手动增益控制 | Yes |
| 红外指示器 | No |
| 系统概览 | |
|---|---|
| 保修 | 2 Years |
| 十字线类型 | Mil-dot |
| 轨道之上观测装置轴线的高度 | - |
| 风阻_仰角调节 | 1/2 MOA |
| 物理 | |
|---|---|
| 三脚架 | - |
| 产品重量 | 0.97 kg (2.1 lbs) |
| 尺寸（长 x 宽 x 高） | 277 × 99 × 93 mm (10.9×3.9×3.7 in) |
| 配件 | |
|---|---|
| 可选附件 | Mil-Standard Hard Shipping/Storage Case #101, Extended Rail Adapter #85, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam |
| 随附配件 | XLR-IR850 Detachable X-Long Range Infrared Illuminator, Battery adapter CR123A 3V / AA 1.5V, Battery, Soft carrying Case, Instruction Manual with Warranty Card, AWReC (Advanced Wireless Remote Control) #94, Picatinny adapter for AWReC (Advanced Wireless Remote Control), Packing Box, Lens Tissue |
