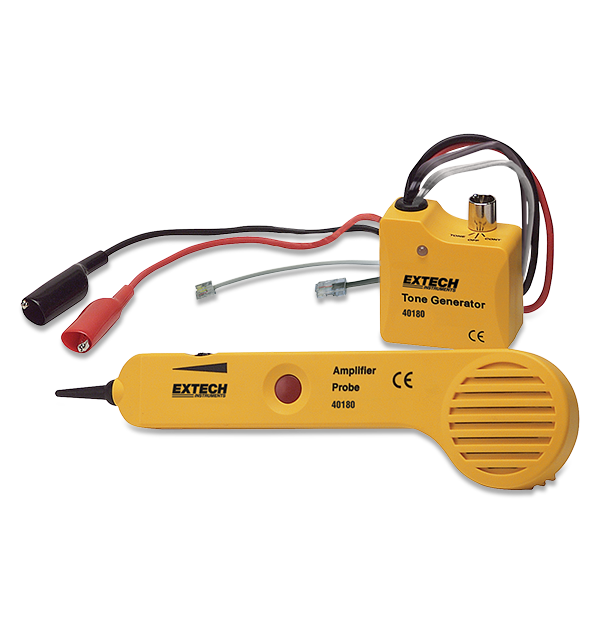

Extech 40180
Tone Generator and Amplifier Probe Circuit Finder Kit
The Extech 40180 is a Tone Generator and Amplifier Probe Kit. This heavy-duty kit with audible tone easily identifies wires or cables. The insulated inductive probe tip prevents shorting conductors. Featuring a wire trace, continuity test, clear/busy/ringing line test, and tip or ring identification. Includes alligator clips, RJ45 and RJ11 modular connectors, 9 V battery, and a case.
Specifications
| General | |
|---|---|
| Tone Output | 1kHz, 6V square wave (approximately) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | Probe: 9 × 2.25 × 1" (228 × 57 × 25.4mm); Generator: 2.5 × 2.5 × 1.5" (63.5 × 63.5 × 38.1mm) |
| Power | 2 × 9V batteries |
| Warranty | 2 years |
| Weight | 9.6oz (272g) |
Resources & Support
Datasheet
Extech 40180 Datasheet
User Manual
Extech 40180 User Manual
