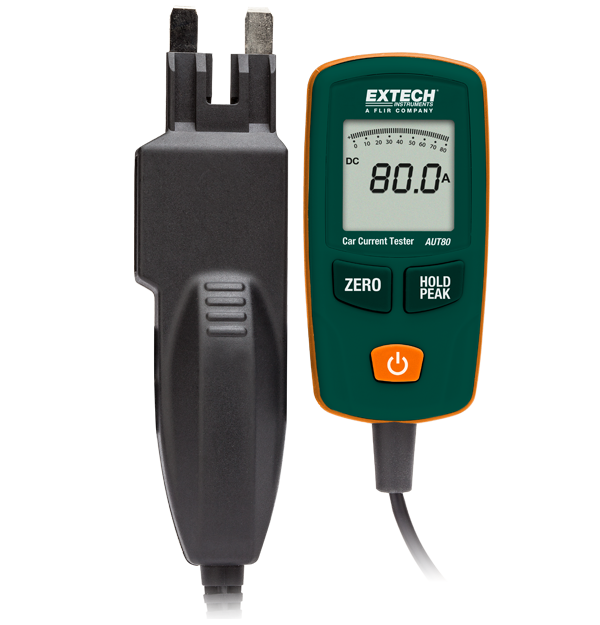

Extech AUT80
80A Current Tester
The Extech AUT80 checks up to 80 A without breaking the circuit. Mini, ATC, and Maxi blade connectors plug into the fuse block. It features a measuring range of 80 A/48 VDC (10 seconds, max) with 0.1 A resolution and (± 2% + 4 digits) accuracy. Results are displayed on a 3.5-digit LCD with bargraph. Includes one 9 V battery.
Specifications
| General | |
|---|---|
| DC Current | 0 to 80ADC |
| DC Current Basic Accuracy | ±(2% of reading + 4 digits) |
| DC Current Max Resolution | 100mA (0.1A) |
| DC Voltage | 48VDC |
| Detection Distance | <0.2" |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 112 × 45 × 33mm (4.4" × 1.8" × 1.3") |
| Power | 1 × 9V battery |
| Warranty | 1 year |
| Weight | 165g (0.4 lbs.) |
