Discontinued

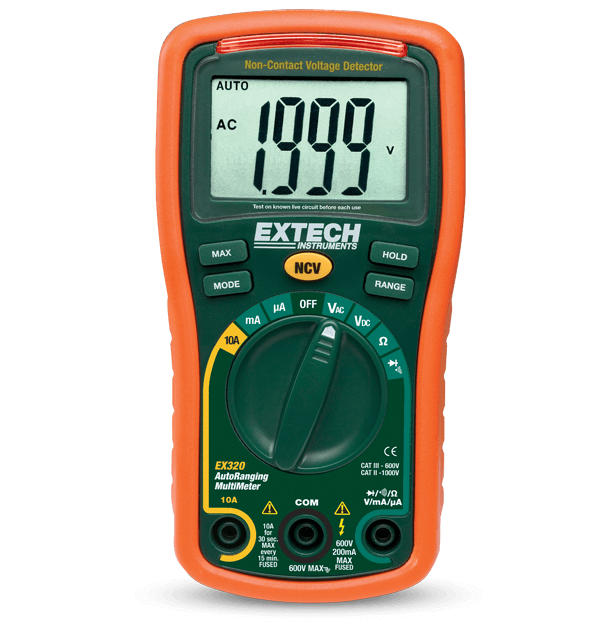

Extech EX320
8 Function Mini MultiMeter + Non-Contact Voltage Detector
The Extech EX320, a compact auto ranging multimeter, features extra large 2000 count display and a built in, non-contact AC Voltage detector. Its large LCD display can display continuity, diode test, and max hold functions, as well as AC/DC voltage/current and resistance measurements. A rubber holster protects the meter. UL listed Cat III – 600 Volt. Includes test leads, two AA batteries, and a tilt stand.
Specifications
| General | |
|---|---|
| AC Current | 0.1µA to 10A |
| AC Voltage | 0.1mV to 600V |
| Continuity | Yes |
| DC Current | 0.1µA to 10A |
| DC Voltage | 0.1mV to 600V |
| Diode Test | Yes |
| Non-Contact Voltage (NCV) Detector | 100 to 600VAC |
| Resistance | 0.1Ω to 20MΩ |
| Additional Details | |
|---|---|
| Certifications | CE, UL, NIST |
| Dimensions | 5.7 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Display | 2000-count segment LCD |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 1000V, CATIII - 600V |
| Warranty | 2 years |
| Weight | 9oz (260g) |
Resources & Support
User Manual
Extech EX320 User Manual
Certification
Extech EX320 Declaration of Conformity
Datasheet
Extech EX3xx Datasheet
