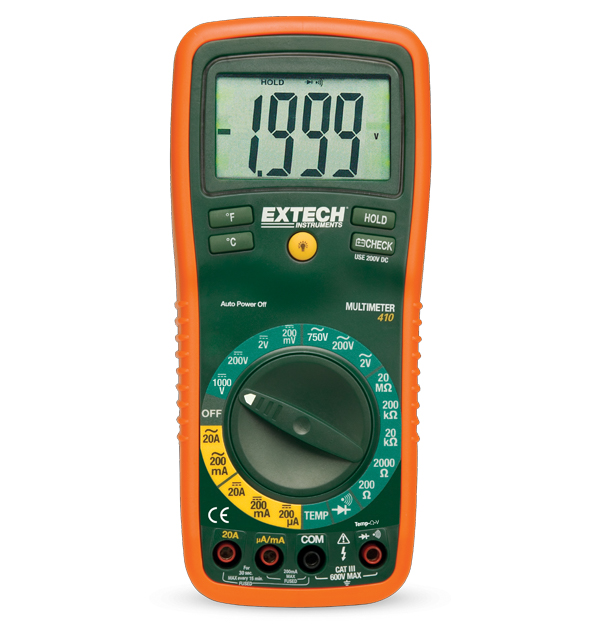

Extech EX410
8 Function Professional MultiMeter
Compact and powerful, the Extech EX410 8 Function true RMS Professional MultiMeter provides the versatility of multiple meters in one convenient device. The EX410 measures AC/DC voltage and current, resistance, diode, and temperance. A large, backlit display and 2.5 cm (1 in) high digits allow for easy reading, while the ergonomically designed housing offers comfortable, one-handed operation. Comes with the multimeter, CAT III test leads, stand, hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, and one 9 V battery.
Specifications
| General | |
|---|---|
| AC Current | 0.1µA to 20A |
| AC Voltage | 1mV to 750V |
| Continuity | Yes |
| DC Current | 0.1µA to 20A |
| DC Voltage | 0.1mV to 1000V |
| DC Voltage Basic Accuracy | ±0.5% |
| Diode Test | Yes |
| Resistance | 0.1Ω to 20MΩ |
| Temperature [Type K] Max Resolution | -4 to 1382°F (-20 to 750°C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | UL |
| Dimensions | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 600V, CATIV - 1000V |
| Warranty | 2 years |
| Weight | 0.75lbs (342g) |
Resources & Support
User Manual
Extech EX410 User Manual
Datasheet
Extech EX4xx Datasheet
