Extech MA160
True RMS 200A AC/DC Open Jaw Clamp Meter

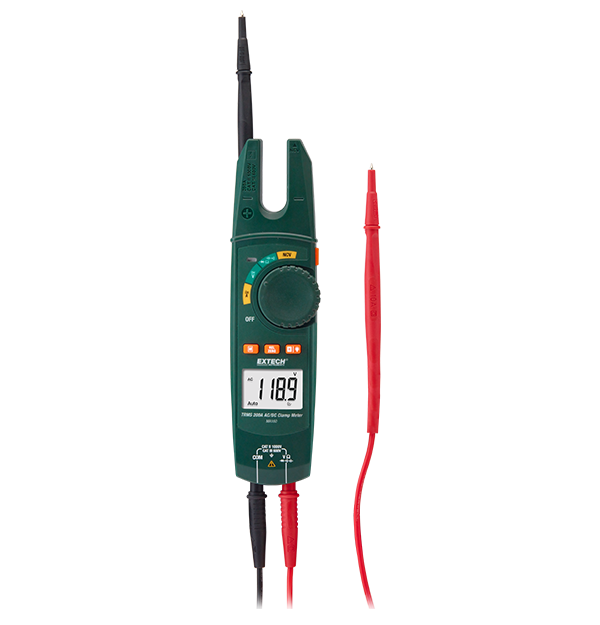

The Extech MA160 is an open jaw True RMS 200 A AC/DC Clamp Meter. Its open jaw design provides quick current measurements in tight locations without breaking the circuit. True RMS provides accurate readings on noisy, distorted, or non-sinusoidal waveforms. The convenient built in non contact voltage (NCV) detector allows quick detection of live voltages while the LED backlight and flashlight help take measurements in dimly lit environments. The MA160 also features AC voltage to 750 V, DC voltage to 1000 V, resistance, capacitance, continuity, and diode test as well as an auto power off and ergonomic housing with built in test lead holders. Complete with test leads, two AA batteries, and pouch.
Specifications
| General | |
|---|---|
| AC Current | 200A |
| AC Current Basic Accuracy | ±(2.5% of reading + 5 digits) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 750V |
| AC Voltage Basic Accuracy | ±(2.5% of reading + 3 digits) |
| AC Voltage Max Resolution | 1mV |
| Capacitance | 60mF |
| Capacitance Max Resolution | 0.01nF |
| Continuity | Yes |
| DC Current | 200A |
| DC Current Basic Accuracy | ±(2.5% of reading + 5 digits) |
| DC Current Max Resolution | 0.1A |
| DC Voltage | 1000V |
| DC Voltage Basic Accuracy | ±(0.8% of reading + 3 digits) |
| DC Voltage Max Resolution | 1mV |
| Diode Test | Yes |
| Jaw Size | 0.57" (14.5mm) |
| Non_Contact Voltage [NCV] Detector | 100 to 750V |
| Resistance | 60MΩ |
| Resistance Max Resolution | 0.1Ω |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, ETL |
| Dimensions | 8.3 × 2.1 × 1.4" (210 × 53 × 35mm) |
| Power | 2 × AA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 5.8oz (164g) |
