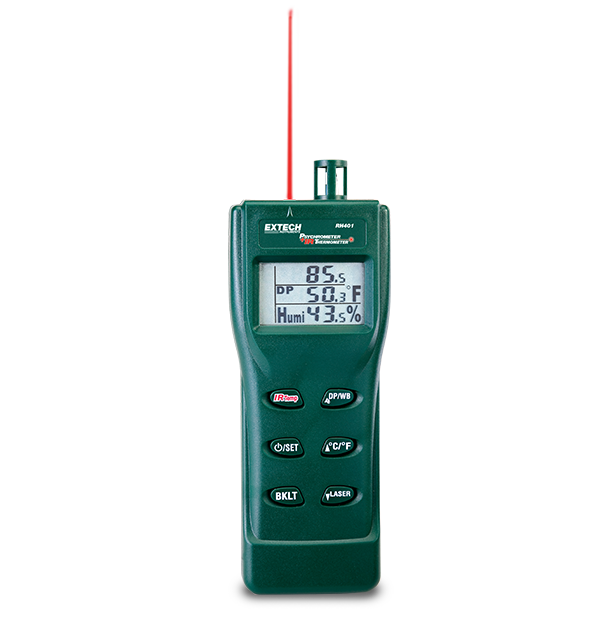

Extech RH401
Digital Psychrometer + InfraRed Thermometer
The Extech RH401 is a Digital Psychrometer with a built in IR Thermometer that allows for quick, non contact surface temperature measurements. It displays air temperature, humidity, surface temperature or dew point, and wet bulb, all on a triple LCD with backlighting. The IR thermometer features adjustable emissivity and a spot to distance ratio of 8:1. The meter calculates temperature difference between IR surface temperature and dew point. Other features include data hold, programmable auto power off, and a retractable probe that protects the sensors when the meter is not in use. Includes hard case and four AAA batteries.
Specifications
| General | |
|---|---|
| Dew Point | -90.4 to 122 °F (-68.0 to 49.9 °C) |
| Dew Point Max Resolution | 0.1 ° |
| Relative Humidity | 10 to 90% |
| Relative Humidity Basic Accuracy | ±3% |
| Relative Humidity Max Resolution | 0.1% |
| Temperature (Air) | -4 to 122 °F (-20 to 50 °C) |
| Temperature (Air) Basic Accuracy | ±1.8 °F/ ±1 °C |
| Temperature (Air) Max Resolution | 0.1° |
| Temperature (IR) Basic Accuracy | -328 to 2498 °F (-200 to 1370 °C) |
| Temperature (IR) Max Resolution | ±0.3% or ±1.8 °F/ ±1 °C |
| Temperature (RTD) | 0.1° |
| Wet Bulb | -6.9 to 122 °F (-21.6 to 49.9 °C) |
| Wet Bulb Max Resolution | 0.1 ° |
| Additional Details | |
|---|---|
| Dimensions | 9 × 2.2 × 1.7" (230 × 57 × 44mm) |
| Power | 4 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 5.3oz (153g) |
