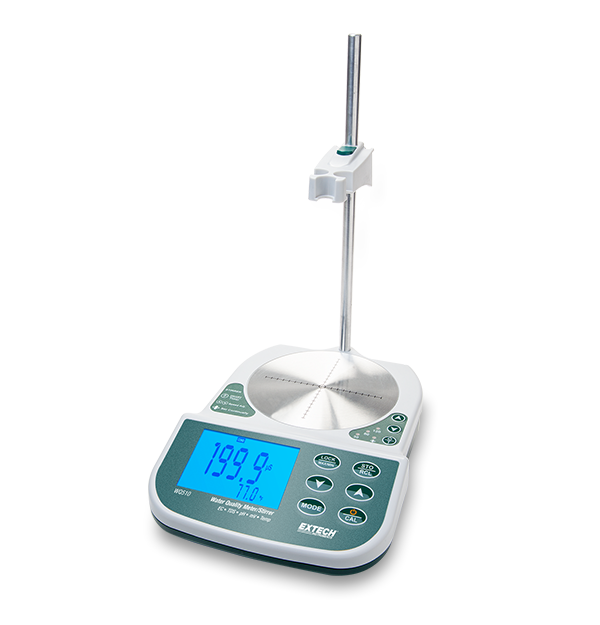

Extech WQ510
Benchtop Water Quality Meter/Stirrer
The Extech WQ510 is a 6 in 1 Benchtop Meter capable of measuring pH, ORP, conductivity, TDS, salinity, and temperature of liquids and semi-solids. The unit features a 30 min, 60 min, and 120 min timer or continuous stirring. It also has 2 or 3 point pH calibration, 1 point conductivity calibration, and automatic temperature compensation. This unit features a large backlit dual display, and the ability to store and recall 150 readings, as well as capture readings directly to a PC via the built-in USB interface. The WQ510 comes with pH glass electrode, conductivity cell, temperature probe, pH calibration solutions (4 pH and 7pH), conductivity calibration solutions (1413 µS and 12.88 mS), plastic burette, polishing paper, electrode clamp and rod, software and USB cable, AC adapter, stirrer, and user manual.
Specifications
| General | |
|---|---|
| Conductivity | 0.0 to 100.0mS |
| Conductivity Basic Accuracy | ±2%FS |
| Conductivity Max Resolution | 0.1mS |
| ORP | -1999 to + 1999mV |
| ORP Basic Accuracy | ±2mV |
| ORP Max Resolution | 0.1mV |
| pH | -2.00 to 16.00pH |
| pH Basic Accuracy | ±0.02pH |
| pH Max Resolution | 0.01pH |
| Salinity | 0.0 to 50.0ppt |
| Salinity Basic Accuracy | ±2%FS |
| Salinity Max Resolution | 0.1ppt |
| TDS | 0.0 to 66.0ppt |
| TDS Basic Accuracy | ±2%FS |
| TDS Max Resolution | 0.1ppt |
| Temperature [Contact] | 32 to 212°F (0 to 100°C) for pH |
| Temperature [Contact] Basic Accuracy | ±1.8°F/1°C |
| Temperature [Contact] Max Resolution | 0.1° |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4 × 5.7 × 1.3" (103 × 145 × 32mm) |
| Power | 100 to 240V AC adapter with US, EU, UK, and AU plugs |
| Warranty | 2 years |
| Weight | 1.5lbs (700g) |
Resources & Support
User Manual
Extech WQ500 WQ510 WQ530 User Manual
Certification
Extech WQ510 Declaration of Conformity
