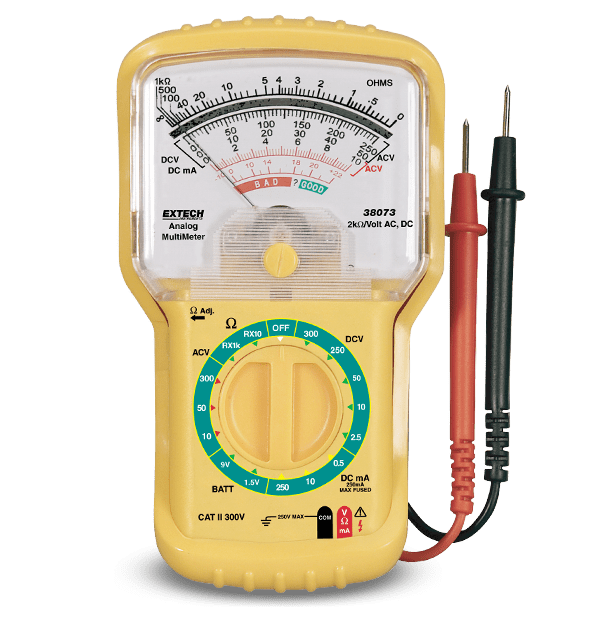

Extech 38073
Mini Analog MultiMeter
Extech’s 38073 Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with protective holster, test leads, and one 1.5 V AA battery.
Specifications
| General | |
|---|---|
| AC Voltage | 10V, 50V, 300V |
| AC Voltage Basic Accuracy | ±5% full scale |
| Battery Test | 1.5V and 9V |
| DC Current | 0.5mA, 10mA, 250mA |
| DC Current Basic Accuracy | ±5% full scale |
| DC Voltage | 2.5V, 10V, 50V, 250V, 300V |
| DC Voltage Basic Accuracy | ±5% full scale |
| Decibel | -10 to 56dB (0dB, 1mW, 600Ω) |
| Resistance | 10kΩ, 1MΩ |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3.5 × 6.1 × 1.9" (88 × 155 × 49mm) with holster |
| Display | Analog |
| Power | 1 × AA (1.5V) battery |
| Safety Category | CAT II-300V |
| Warranty | 2 years |
| Weight | 8.2oz (288g) with holster and test leads |
