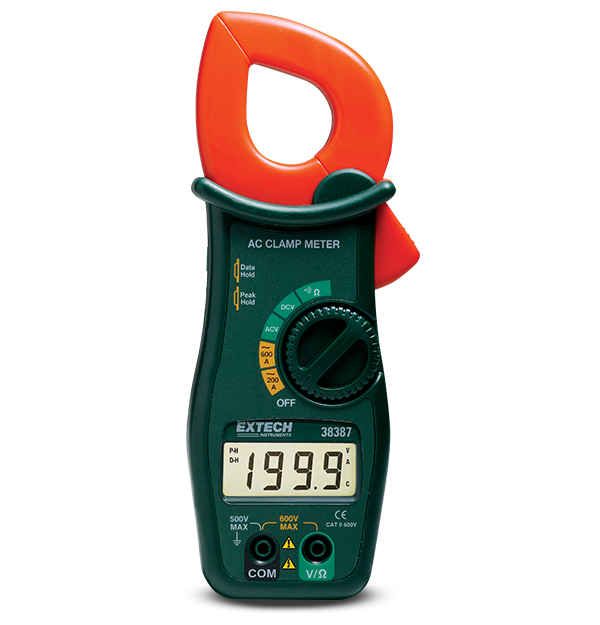

Extech 38387
600A AC Clamp + MultiMeter
The Extech 38387 is a 600 A AC Clamp Meter which has a 3.2 cm (1.25 in) circular jaw for large cables up to 350 MCM. In addition to AC Current, it can measure AC/DC voltage, resistance, and has a continuity beeper. Meter features also include data hold and an auto power off. Product comes complete with test leads, 9 V battery, and a belt holster.
Specifications
| General | |
|---|---|
| AC Current | 200.0A, 600A |
| AC Current Basic Accuracy | ±(1.5% of reading + 4 digits) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±(1.5% of reading + 4 digits) |
| AC Voltage Max Resolution | 1V |
| Continuity | Beeper ≤50Ω |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±(1% of reading + 1 digit) |
| DC Voltage Max Resolution | 1V |
| Jaw Size | 1.25" (33mm), conductors up to 350MCM |
| Resistance | 2000Ω |
| Resistance Max Resolution | 1Ω |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 3.1 × 8 × 1.6" (79 × 203 × 41mm) |
| Display | Segment LCD |
| Power | 1 × 9V battery |
| Safety Category | CAT II-600V |
| Warranty | 2 years |
| Weight | 6.5oz (185g) |
Resources & Support
User Manual
Extech 38387 User Manual
Datasheet
Extech 38387 38389 Datasheet
Certification
Extech 38387 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
