Extech BR250-4
Video Borescope/Wireless Inspection Camera

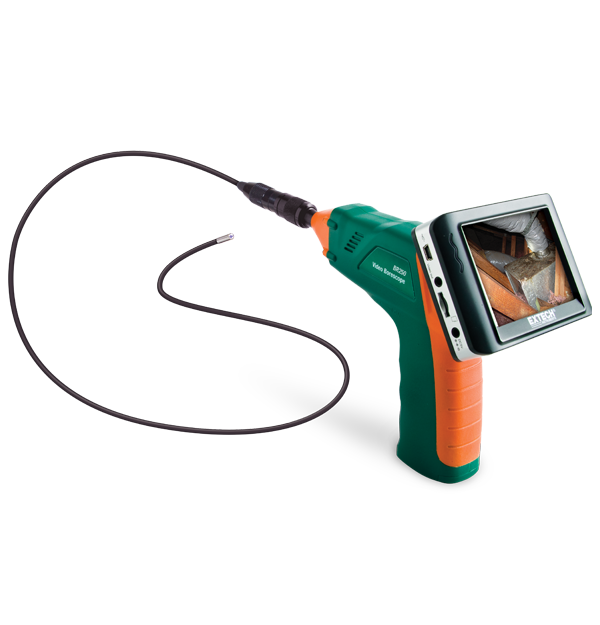

Extech’s BR250-4 Video Borescope Inspection Camera with a 4.5 mm camera provides a glare free, close up field of view. It includes a 8.9 cm (3.5 in) color TFT LCD wireless monitor that can be detached from the base and viewed from a remote location up to 9.8 m (32 ft) from measurement point. Images and videos can be captured with a date/time stamp and played back on the monitor or viewed on a PC via USB input. Ideal for home inspection, HVAC, and automotive applications.
Specifications
| General | |
|---|---|
| Diameter | 4.5mm |
| Field of view [FOV] | 63° |
| Focus Distance | 5.9" to 9.8" (15 to 25cm) |
| Frame Rate | 10, 15, 20, 25, 30FPS |
| Length | 3.3ft (1m) |
| Minimum Bend Radius | 2.36" (60mm) |
| Output Format | 960 × 240 (avi format); 640 × 480 (jpeg format) |
| Resolution | 712 × 486 (NTSC) |
| Video Output Level | 0.9 to 1.3V@75Ω |
| Wireless Transmission Frequency | 2.4GHz |
| Wireless Transmission Range | 32ft (10m) unobstructed view |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | Handle: 7.3 × 5.7 × 1.6" (186 × 145 × 41mm); Monitor: 3.9 × 2.7 × 1" (100 × 70 × 25mm) |
| Display | 3.5" TFT (320 × 240 pixels) |
| IP Rating | IP57 |
| Power | 4 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | Handle: 18.7oz (530g); Monitor: 4.9oz (140g) |
