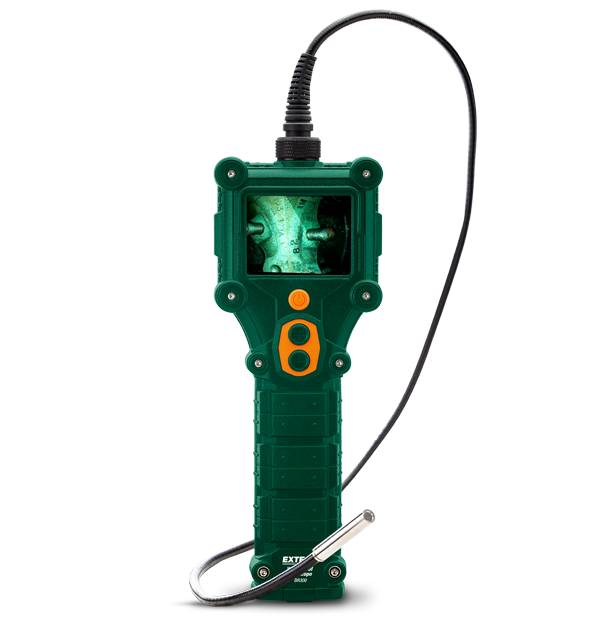

Extech BR300
Waterproof Video Borescope Inspection Camera
The Extech BR300 is a Waterproof (IP67) Video Borescope Inspection Camera. Its 8 mm diameter camera head comes with 4 built in bright LED lamps for dimly lit areas. Other features include a 2 x digital zoom for close-up viewing and a low battery indicator, all visible on a 68 mm (2.7 in) color TFT LCD monitor. Complete with camera probe and 1 m (39 in) flexible gooseneck cable, 4 AA batteries, and hard case.
Specifications
| General | |
|---|---|
| Cable Length | 39" (1m) |
| Diameter | 0.31" (8mm) |
| Field of view [FOV] | 60° |
| Focus Distance | 0.8 to 2.75" (2 to 7cm) |
| LED[s] | 4 LEDs with dimmer |
| Minimum Bend Radius | 1.2" (30mm) |
| Resolution | 640 × 480 pixels |
| Zoom | 2x Digital |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 9.8 × 3.7 × 1.7" (249 × 94 × 43mm) |
| Display | 2.7" (68mm) color TFT (960 × 240 pixels) |
| IP Rating | IP67 |
| Power | 4 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 13.4oz (380g) |
Resources & Support
User Manual
Extech BR300 BR350 User Manual GB
Datasheet
Extech BR3xx Datasheet
