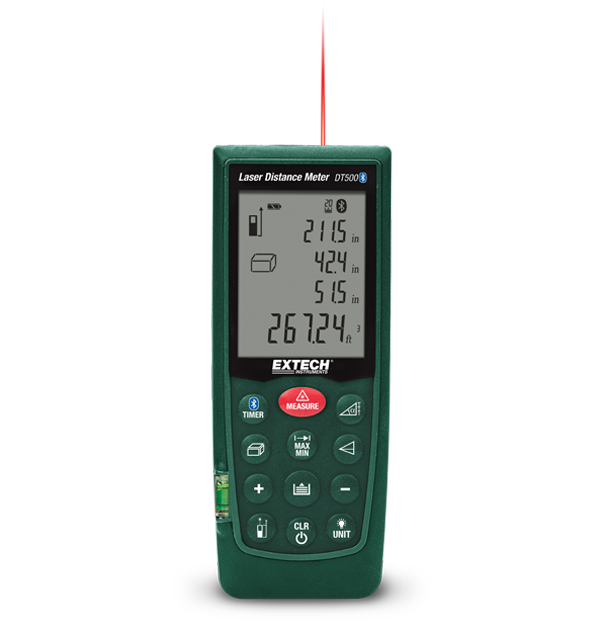

Extech DT500
Laser Distance Meter with Bluetooth®
View distance measurements taken by the Extech DT500 from a remote area on your iOS device. It works with a free Apple app to display large, easy-to-read values up to 10 m (30 ft) away and measures up to 70 m (229 ft) with a target plate. In addition to distance measurements, the meter’s built-in bubble level provides easy visual guidance on determining if a surface is level. Continuous measurement function with min/max distance tracking updates every 5 seconds and it automatically calculates area and volume. Complete with carrying case, tripod mount, and 2 AA batteries
Specifications
| General | |
|---|---|
| Area Calculation | 999.99 ft², 999.99 m² |
| Distance | 2" to 229' (0.05 to 70m) with a target plate, 2" to 164' (0.05 to 50m) without a target plate |
| Distance Basic Accuracy | ±0.06" ( ±1.5mm) |
| Distance Max Resolution | 0.0625" (0.001m) |
| Length Add Calculation | 99'11" (99.99m) |
| Volume Calculation | 999.99 ft³, 999.99 m³ |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.3 × 2.3 × 1.3" (135 × 58 × 33mm) |
| IP Rating | IP54 |
| Power | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 7.2oz (203g) |
Resources & Support
Certification
Extech DT500 Declaration of Conformity
Datasheet
Extech DT500 Datasheet
User Manual
Extech DT500 User Manual
