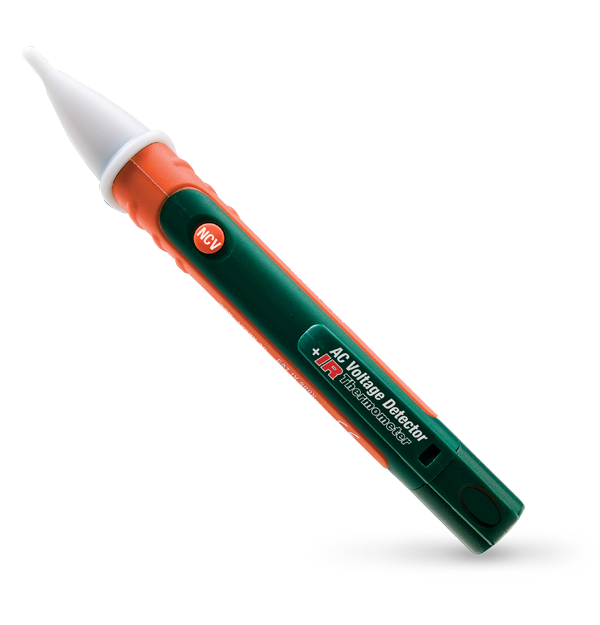

Extech DV40
AC Voltage Detector + IR Thermometer
Quickly check for the presence of live wires before testing. Suitable for outlets or against wire insulation testing. Model DV40 combines a CAT III-1000V voltage detector with a wide range from 50 to 1000 Volts with an infrared thermometer that can measure and display non-contact surface temperatures on the built-in LCD screen using a from -30°C to 230°C (-20°F to 445°F). 1:1 distance to target ratio. Includes 3 LR44 batteries.
Specifications
| General | |
|---|---|
| Audible/Visible Indication | Flashing LED |
| Detection Distance | <1" |
| Distance to Target Ratio | 1:1 |
| Emissivity | 0.95, fixed |
| Frequency Bandwidth | 50/60Hz |
| Temperature (IR) Basic Accuracy | ±2% of reading or ±4˚F/2˚C (above 77°F); ±6˚F/3˚C (below 77°F); ±8˚F/4˚C (below -8°F) |
| Temperature (IR) Max Resolution | 0.1°F/°C; 1°F/°C |
| Temperature [IR] | -20 to 445 °F (-30 to 230 °C) |
| Voltage Detection (Non-Contact) | 50 to 1000VAC |
| Additional Details | |
|---|---|
| Certifications | CE, ETL |
| Dimensions | 6.25 × 1" (159 × 25mm) |
| Power | 3 × LR44 (1.5V) batteries |
| Safety Category | CATIII -1000V |
| Warranty | 2 years |
| Weight | 1.48oz (42g) |
