Discontinued
Extech HDV-25CAM-30G
25 mm Videoscope Camera Head

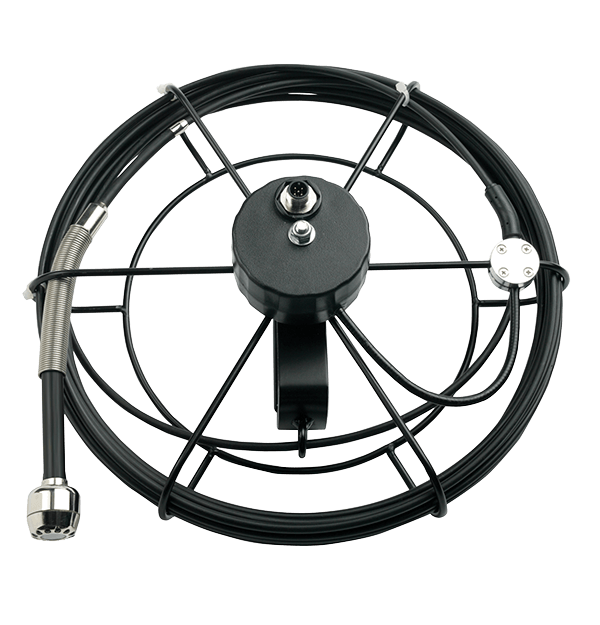

The Extech HDV-25CAM-30G is an optional camera for use with the HDV600 Videoscope series. This 25 mm camera head with a long depth of field lens features a 73° field of view. It has a thirty meter fiberglass-core cable length.
Specifications
| General | |
|---|---|
| Camera Head | Copper with nickel coating housing |
| Diameter | 25mm (0.98") |
| Field of view [FOV] | 73° |
| Focus Distance | 6cm to ∞ (2.36" to ∞) |
| LED[s] | 12 |
| Length | 30m (98.4') |
| Light Intensity | Max 8000 Lux at 20mm |
| Resolution | 640 × 480 pixels |
| Additional Details | |
|---|---|
| Certifications | CE |
| Warranty | 1/2 years |
Resources & Support
Datasheet
Extech HDV-xTXx-HDV-xCAM Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
