Discontinued

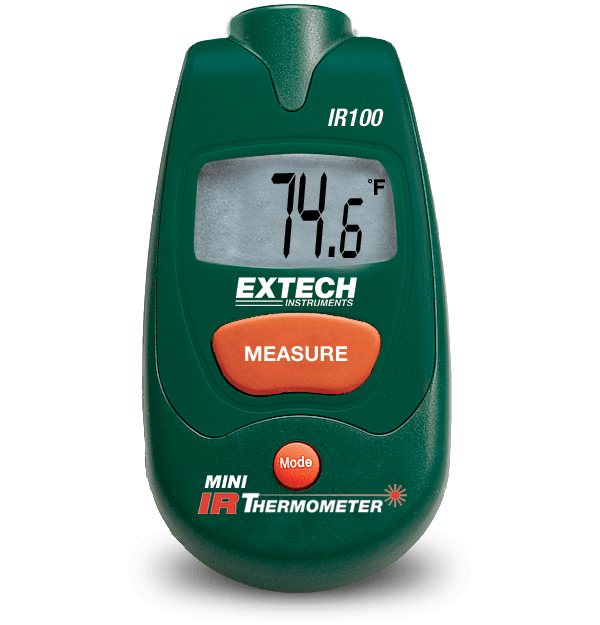

Extech IR100
Mini IR Thermometer
The Extech IR100 Mini IR Thermometer has a temperature range from -33°C to 230°C (-34°F to 446°F). Its fixed 0.95 emissivity covers 90 percent of all surface applications. This meter has an economical, miniature-sized design for better convenience. It features automatic data hold when the measure button is released, as well as max/min hold and an auto power off function. Also, there is a lock feature for continuous scanning. The IR100 comes complete with a CR 2032 3 V battery.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 1:1 |
| Emissivity | 0.95, fixed |
| Targeting | none |
| Temperature (IR) Basic Accuracy | -34 to 446 °F (-33 to 230 °C) |
| Temperature (IR) Max Resolution | ±2.0% of reading or ±4°F/ ±2 °C |
| Temperature (RTD) | 0.1 °F/ °C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3 × 1.6 × 0.7" (75 × 40 × 18mm) |
| Power | 1 × CR2032 (3V) battery |
| Warranty | 2 years |
| Weight | 1.5oz (43g) |
