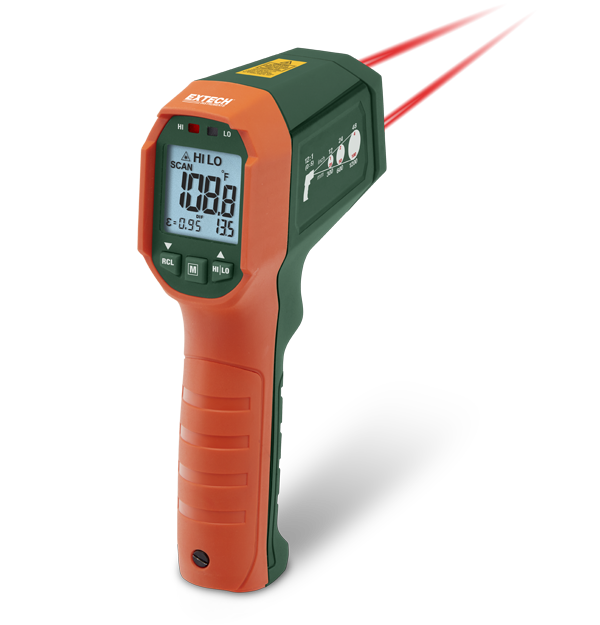

Extech IR320
Dual Laser IR Thermometer
Rugged design with Waterproof (IP65) and 9.8ft (3m) drop-proof protection, Extech IR320 provides fast and accurate temperature measurements up to 1202°F (650°C). Its dual guided laser shows the target area between the two points at a 12:1 distance to target ratio. It has programmable High and Low Alarms with Red (HI) and Blue (LOW) visual LED alert. The Lock function allows for continuous measurement.
Identifies target area between the two points (~1"/25mm diameter of measured area)
LCD displays LO with Blue LED flashing when reading falls below Low alarm set point
Measure non-contact temperature up to 1202°F/650°C
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 12:1 |
| Emissivity | 0.10 to 1.00, adjustable |
| Targeting | dual laser |
| Temperature (Air) Max Resolution | 0.1 °F/ °C |
| Temperature (IR) Basic Accuracy | -4 to 1202 °F (-20 to 650 °C) |
| Temperature (IR) Max Resolution | ±(1% of reading + 2 °F/1 °C) |
| Additional Details | |
|---|---|
| Certifications | IR320-NIST_S: CE, NIST IR320_S: CE |
| Dimensions | 7.4 × 4.6 × 2.2" (189 × 118 × 55mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 10.3oz (292g) |
Resources & Support
Certification
Extech IR320 Declaration of Conformity
Datasheet
Extech IR320 Datasheet
User Manual
Extech IR320 User Manual GB
