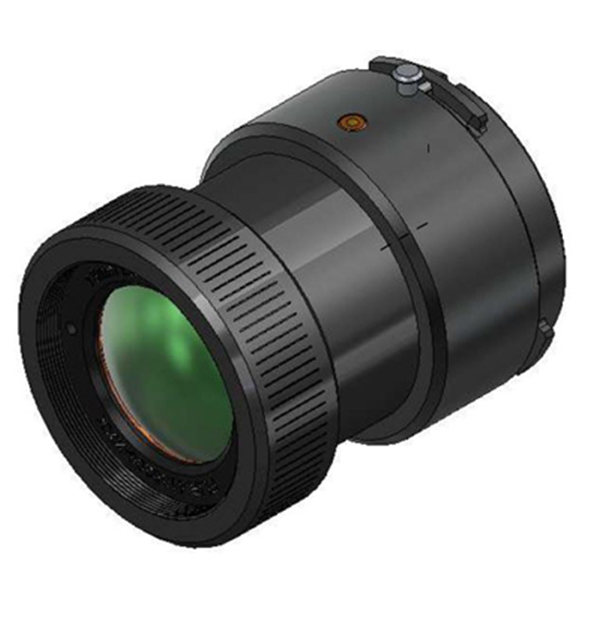

13 mm MWIR (3-5um) Manual Focus Lens (4255676)

3-5 µm 13 mm f/2.5 FPO Manual

13 mm MWIR (3-5um) Manual focus f/2.5 Lens with bayonet lens mount for use on Flir High Performance midwave infrared (MWIR) cameras, including A67xx MWIR

Specifications

Imaging & Optical
Diameter 57.2 mm (2.25 in)
Distortion <1%
f-number 2, 5
Field of View (H & V & D) 40, 5 (H)
32, 9 (V)
50, 6 (D)
Focal Length 13 mm
Focus Manual
Focus Range 100 mm to∞
Hyperfocal Distance 2.8 m
Length Outside the camera: 67.1 mm ( 2.64 in)
Spectral Band 3 to 5 µ
Environmental & Certifications
Operating Temperature Range -20°C to 70°C (68°F to 158°F)
Storage Temperature Range -40°C to 85°C (-40°F to 185°F)
General
Average Transmission 95%
Weight ~.38 kg (0.84 lbs)

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
