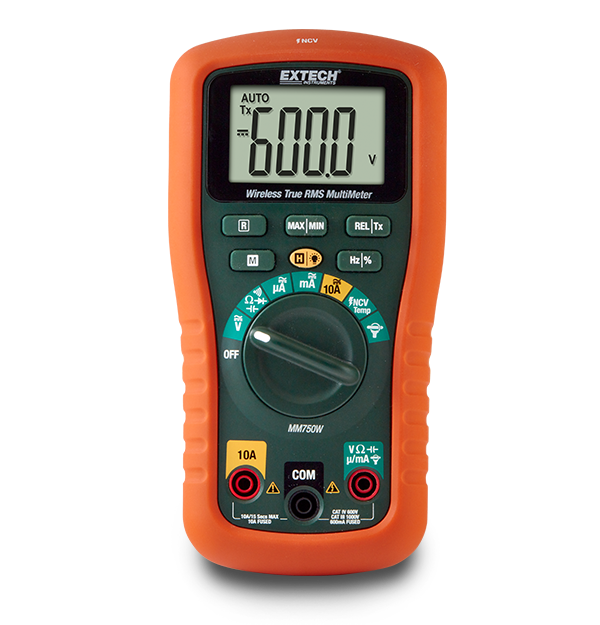

Extech MM750W
Wireless Datalogging CAT IV True RMS Multimeter
Extech’s MM750W is a fully loaded, rugged, Wireless Datalogging Multimeter with 14 functions. It includes non-contact AC voltage detection and Type-K temperature measurement. Using the wireless feature, Bluetooth® data logging module, and the free ExView® W-Series App, you can transmit readings in real-time to your smart devices, store over 15K readings for wireless transfer to generate a report/data analysis, add notes and readings to photos taken from your smart device camera, and use your smart device as a 2nd display for easy viewing or sharing. A smart meter that does not require a clipboard or notepad on the job.
Specifications
| General | |
|---|---|
| AC Current | 0.1µA to 10.00A, 0.1µA to 6000µA |
| AC Current Basic Accuracy | ±0.15% of reading ±5 digits |
| AC Current Max Resolution | 0.1µA |
| AC Voltage | 0.1mV to 1000V |
| AC Voltage Basic Accuracy | ±0.6% of reading ±3 digits |
| AC Voltage Max Resolution | 0.1mV |
| Capacitance | 9.999nF to 99.99mF |
| Capacitance Max Resolution | 0.001nF |
| Continuity | Yes, audible |
| DC Current | 0.1µA to 10.00A, 0.1µA to 6000 µA |
| DC Current Basic Accuracy | ±0.12% of reading ±5 digits |
| DC Current Max Resolution | 0.1µA |
| DC Voltage | 0.1mV to 1000V |
| DC Voltage Basic Accuracy | ±0.6% of reading ±2 digits |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | 3.000V |
| Diode Test Max Resolution | 0.001V |
| Duty Cycle | 0.1 to 99.9% |
| Duty Cycle Basic Accuracy | ±1.2% of reading ±2 digits |
| Duty Cycle Max Resolution | 0.10% |
| Frequency | 9.999Hz to 55.00MHz |
| Frequency Basic Accuracy | ±1.5% of reading ±3 digits |
| Frequency Max Resolution | 0.001MHz |
| Memory | 15,360 data points with DAT12 module |
| Non-Contact Voltage (NCV) Detector | >100VAC |
| Resistance | 0.1Ω to 60.00MΩ |
| Resistance Max Resolution | 0.1Ω |
| Temperature (Type K) Max Resolution | -40 to 1832 °F (-40 to 1000 °C) |
| Temperature (Type N) | ±(2% + 2°F/°C) |
| Temperature (Type N) Basic Accuracy | 1°F/°C |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL, FCC |
| Dimensions | 7.4 × 3.8 × 2.2" (188 × 96 × 56mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIV - 600V, CATIII - 1000V |
| Warranty | 3 years |
| Weight | 14.6oz (415g) |
