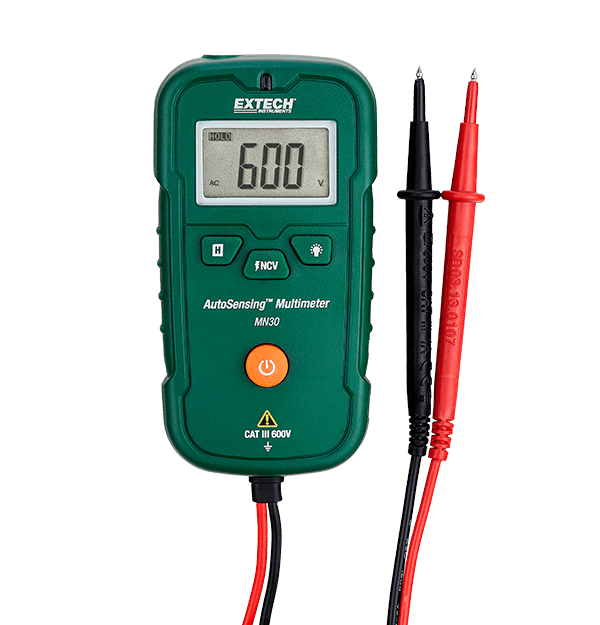

Extech MN30
True RMS AutoSensing™ Multimeter + NCV
The Extech MN30 is a convenient pocket multimeter with an AutoSensing™ feature. The AutoSensing™ feature enables the meter to recognize inputs and automatically switch to the correct mode of operation (i.e. voltage to resistance measurements). The true RMS AC voltage measurement allows for accurate readings regardless of waveforms. The built in, non-contact voltage (NCV) detector allows for quick detection of live voltage. Convenient LED flashlight illuminates dimly lit area.
Specifications
| General | |
|---|---|
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±(1.5% of reading + 3 digits) |
| AC Voltage Max Resolution | 0.01V |
| Continuity | <30Ω (beeper) |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±(1.5% of reading + 3 digits) |
| DC Voltage Max Resolution | 0.01V |
| Non_Contact Voltage [NCV] Detector | 50 to 600VAC |
| Resistance | 1Ω to 10MΩ |
| Resistance Max Resolution | 1Ω |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, ETL |
| Dimensions | 4.8 × 2.6 × 1.4" (123 × 65 × 35mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 50V to 600V |
Resources & Support
Datasheet
Extech MN30 Datasheet
Certification
Extech MN30 Declaration of Conformity
